Overview

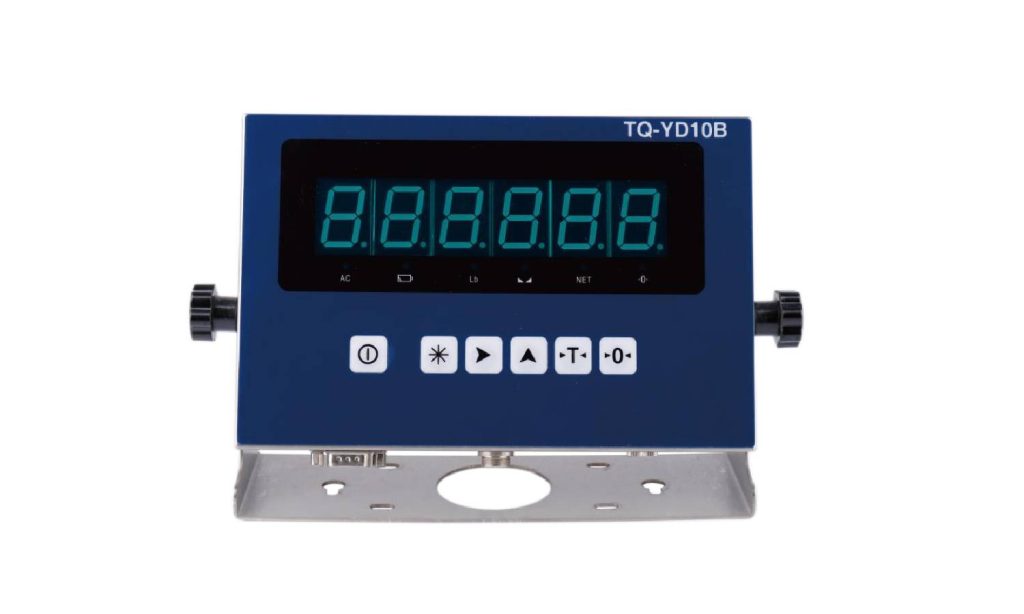

The TQ-YD10B is a compact weighing indicator achieving Class III accuracy and accepting either analog or digital load cells. A maintenance-free internal battery allows cordless operation, and its light, adaptable design suits both industrial and commercial weighing.
Key Features
- Supports analog or digital sensors
- Class III weighing accuracy
- Internal battery for cordless use
- High combined accuracy and excellent long-term stability
- Compact design for straightforward integration
Applications
Suited to industrial and commercial weighing instruments that need a portable, versatile display controller.
| Technical Parameters | |||
|---|---|---|---|
| Level | Level: III n=3000 | Input signal | Analog sensor or Digital Junction Box |
| Voltage | 220V/50HZ | Build-in battery | 6V/4Ah Maintenance-free battery, continuous work 60 hours after full charge |
| Working temperature | -10°C~40°C | Working humidity | <85%RH |
| Dimensions | 210x140x70 (mm) | Junction Box size | 152x86x36 (mm) |
| Weight | about 1.1Kg | ||
Frequently Asked Questions
What are the typical applications of the TQ-YD10B?
Suited to industrial and commercial weighing instruments that need a portable, versatile display controller.
Which indicator, transmitter or system works with the TQ-YD10B?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
