Overview

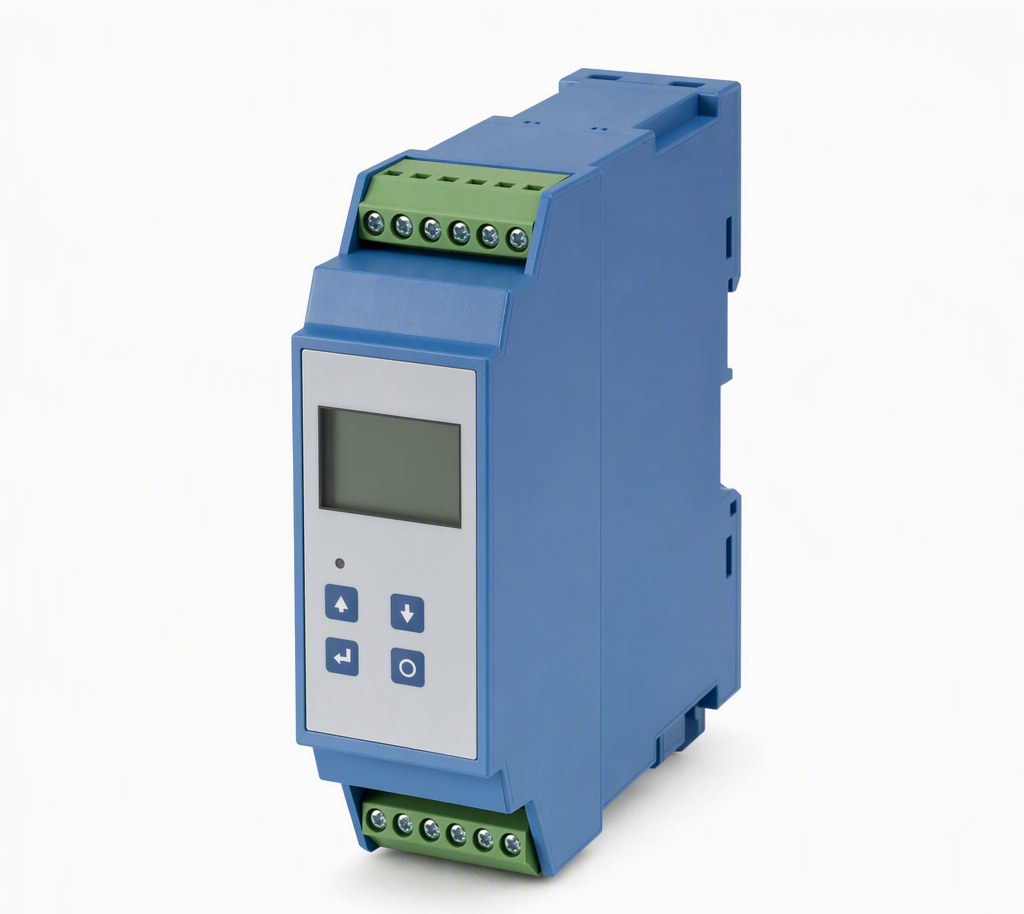

The TQ-Y2105 is a rail-mounted weighing module that conditions load-cell signals and provides a quickly adjustable analogue output. It handles tare, empty-scale zeroing and overload alarm duties with high linearity and strong immunity to electrical interference, and clipping onto 35 mm standard rail makes fitting, removal and maintenance straightforward.
Key Features
- Fast analogue output adjustment
- Tare, zero and overload alarm functions
- 35 mm standard rail mounting
- High linearity with strong noise immunity
- Standard output 4 ~ 20mA, compatible with common indicators
- Compact design for straightforward integration
Applications
Weighing and force-monitoring cabinets and control panels where load-cell signals need compact rail-mounted conditioning and analogue transmission.
| Technical Parameters | |||
|---|---|---|---|
| Display | 6Pcs Digital tube | Keyboard | 5 Pcs Button |
| Sensor excitation voltage | 5V DC | Serial port | Half-duplex RS485 |
| A/D resolution | 2,000,000 | A/D Conversion rate | 6.25 ~ 100Hz |
| Analog current output | 4 ~ 20mA | Analog voltage output | 0 ~ 5V 0 ~ 10V |
| Instrument power supply | 16 ~ 24VDC | Operating temperature range | -20 ~ 60°C, relative humidity: 10% ~ 85%, non-condensing |
| Storage temperature range | -40 ~ 80°C, relative humidity: 10% ~ 85%, non-condensing | Dimension (L x W x T) | 121x72x34mm or 128x72x34mm |
Frequently Asked Questions
What are the typical applications of the TQ-Y2105?
Weighing and force-monitoring cabinets and control panels where load-cell signals need compact rail-mounted conditioning and analogue transmission.
Which indicator, transmitter or system works with the TQ-Y2105?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
