Overview

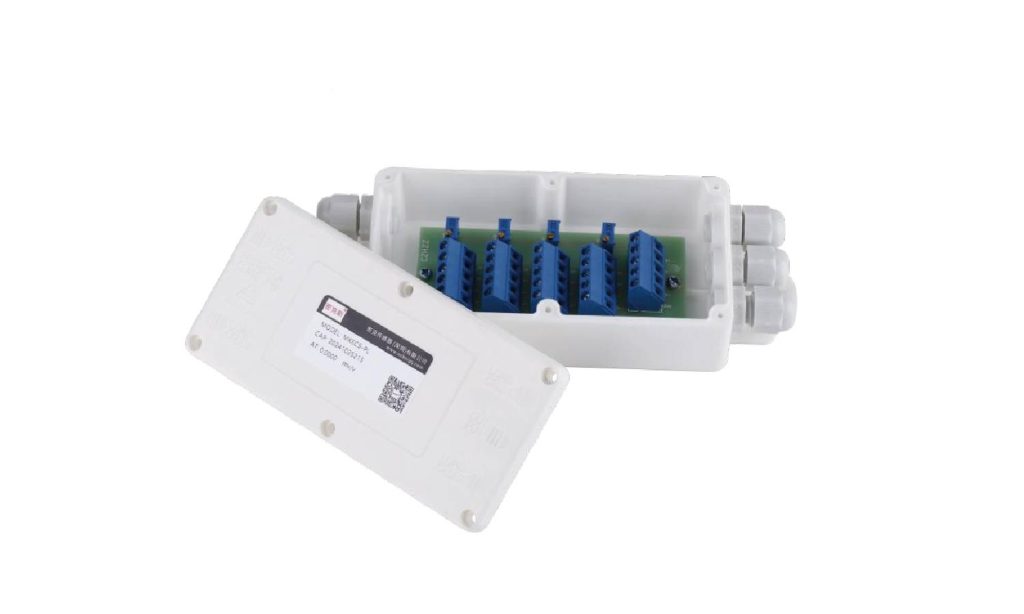

The MKEC5-PL is a digital junction box that acts as the intelligent signal-handling core of a multi-cell weighing system. It aggregates signals from several load cells and applies corner adjustment and temperature compensation to raise overall system accuracy, while lightning and surge protection, a high ingress rating and orderly, maintainable wiring keep industrial installations running reliably.
Key Features
- Corner adjustment and temperature compensation
- Lightning and surge protection
- High ingress protection rating
- Simple, maintainable wiring layout
- High combined accuracy and excellent long-term stability
- Compact design for straightforward integration
Applications
Suits industrial automation, precision weighing and process-control installations where several load cells must be combined into one accurate signal path.

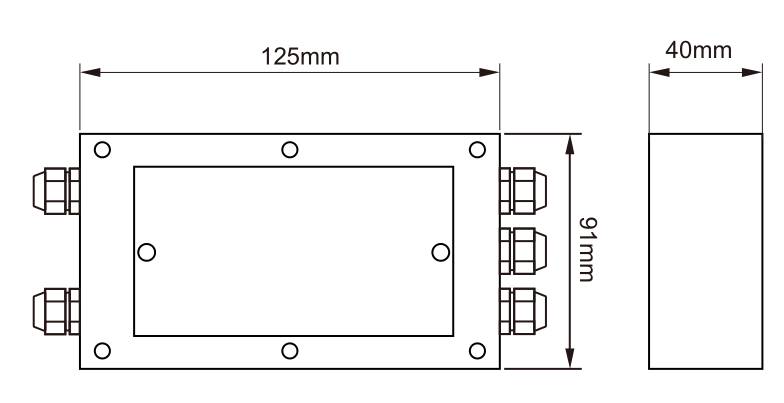

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MKEC5-PL?
Suits industrial automation, precision weighing and process-control installations where several load cells must be combined into one accurate signal path.
Which indicator, transmitter or system works with the MKEC5-PL?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
