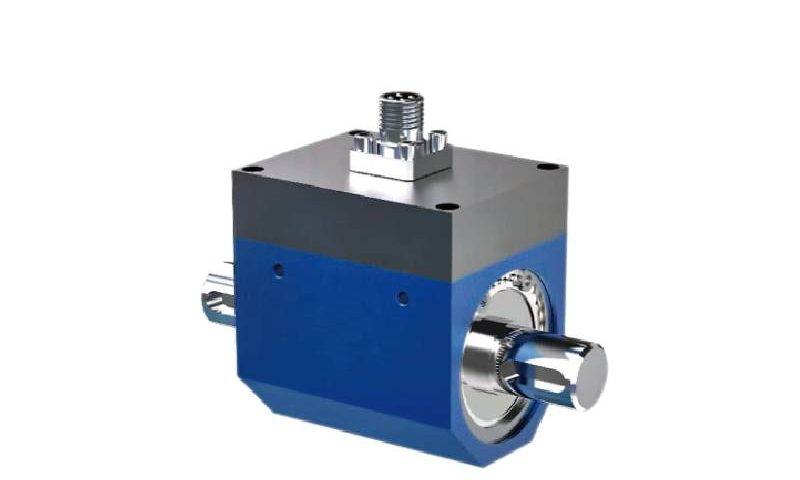

Overview
The MK922 industrial torque sensor captures torque from rotating or stationary components in real time and converts it into a high-accuracy electrical signal, providing the data behind automated control, efficiency tuning and fault early-warning. It is a dependable sensing core for demanding drivetrain and assembly applications.
Key Features
- Real-time rotating or static torque capture
- High-accuracy torque-to-signal conversion
- Supports fault early-warning and efficiency tuning
- High accuracy (≤±0.2%F.S) for precise measurement
- Stainless steel elastic element for durability and corrosion resistance
- Sealed to IP65 for reliable operation in harsh environments
Applications
Applied to EV motor and gearbox test benches, robotic joints and automated tightening, wind-turbine drive trains, and CNC machine-spindle monitoring.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 0.05N.m, 0.2N.m, 0.5N.m, 2N.m, 5N.m, 100N.m, 200N.m, 500N.m | Nonlinearity | ≤±0.2%F.S |
| Temperature compensated range | -10°C~40°C | Repeatability | ≤±0.1%F.S |
| Operating temperature range | -20°C~60°C | Zero balance | ≤±2%F.S |
| Temperature Effect on Output | ≤±0.2%F.S/10°C | Recommended excitation voltage | 24V DC |
| Temperature Effect on Zero | ≤±0.2%F.S/10°C | Maximum speed | Max. 5000r/min |
| Insulation resistance | ≥2000MΩ 50VDC | Output signal | (M-)–10V–0–10V(M+)/RS485 |
| Material | Stainless steel | Safe overload | 120%F.S. |
| Protection class | IP65 | Cable connection | 24V: Red; 24V: Black; Analog output+: Green / RS485+: Blue; Analog output-: White / RS485-: Yellow; Zero reset: Brown |

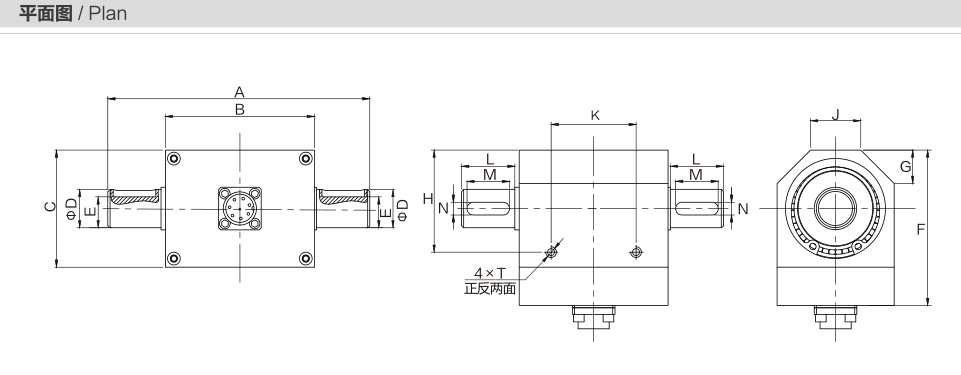

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK922?
Applied to EV motor and gearbox test benches, robotic joints and automated tightening, wind-turbine drive trains, and CNC machine-spindle monitoring.
Which indicator, transmitter or system works with the MK922?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
