Overview
The MK910 is an industrial torque sensor that captures torque changes on rotating or stationary machine components in real time and converts physical torque into a high-accuracy electrical signal. Its strong dynamic response and stability provide the key data behind automated control, energy-efficiency optimisation and early fault warning across demanding drive systems.
Key Features
- Captures rotating or stationary torque
- High dynamic response and stability
- Supports early fault warning
- High accuracy (–) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to – for reliable operation in harsh environments
Applications
Applied on EV motor and gearbox test benches, robot joints and automated tightening tools, wind-turbine main shafts and gearboxes, mining machinery, marine drive shafts and CNC spindles.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 0~0.1 / 0.2 / 0.5 / 1 / 2 / 3 / 5 / 10 / 20 / 30 / 50N.m | Comprehensive accuracy | – |
| Temp. compensated range | -10°C~40°C | Output sensitivity | 1.5±10%mV/V |
| Operating temp. range | -20°C~60°C | Nonlinearity / Repeatability | 0.2%F.S. / 0.2%F.S. |
| Temp. Effect on Output | ±0.03%F.S./10°C | Hysteresis | 0.2%F.S. |
| Temp. Effect on Zero | ±0.03%F.S./10°C | Creep (30 min) | ±0.03%F.S/30min |
| Input impedance | 350 / 750±10Ω | Zero balance | ±2.0%F.S |
| Output impedance | 350 / 700±5Ω | Excitation voltage | 5-12V DC |
| Insulation resistance | ≥5000MΩ / 100VDC | Safe overload | 120%F.S |
| Material | Aluminum alloy | Limit overload | – |
| Protection class | – | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

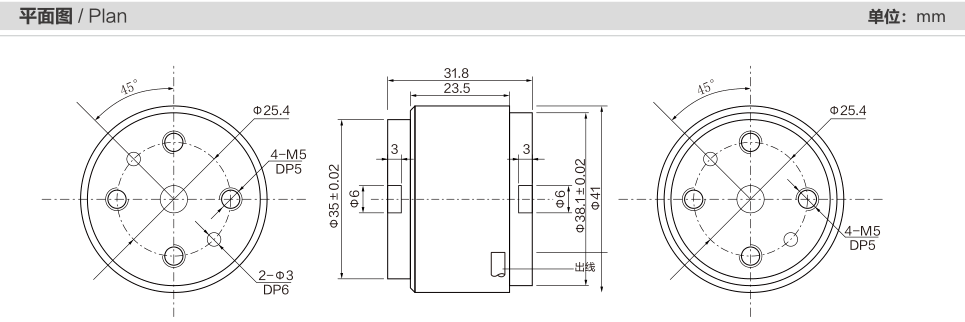

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK910?
Applied on EV motor and gearbox test benches, robot joints and automated tightening tools, wind-turbine main shafts and gearboxes, mining machinery, marine drive shafts and CNC spindles.
Which indicator, transmitter or system works with the MK910?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
