Overview

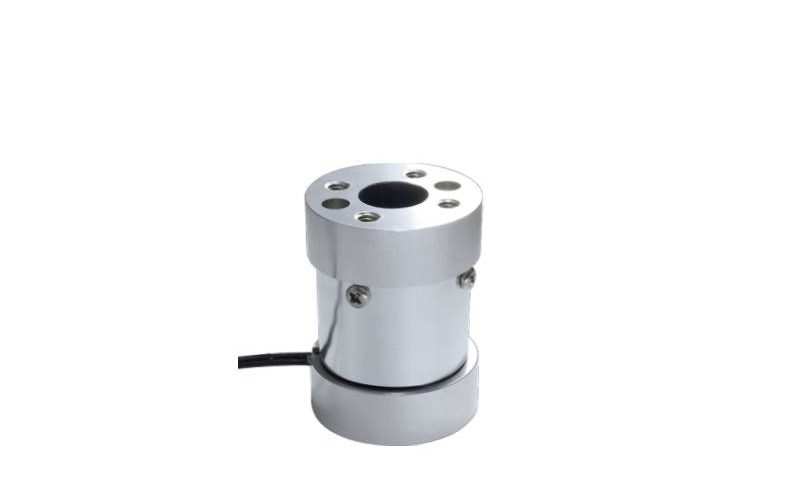

The MK908 is a compact, lightweight rotary torque sensor with high accuracy, good stability and strong immunity to interference. It captures torque changes on rotating or stationary machine elements and converts them into a precise electrical signal in real time, supplying the data behind automated control, energy optimisation and early fault warning.
Key Features
- High accuracy (0.2%F.S.) for precise measurement
- Aluminum alloy / Alloy steel elastic element for durability and corrosion resistance
- Sealed to IP64 for reliable operation in harsh environments
- Standard output 1.0~2.0mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Torque testing of electric motors, engines and rail traction; EV motor and gearbox benches; wind-turbine main shafts and gearboxes; robot joints and automated tightening tools; CNC spindles; mining and marine drives.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 0.2N.m, 0.5N.m, 1N.m, 5N.m, 20N.m, 50N.m, 100N.m | Output sensitivity | 1.0~2.0mV/V |
| Temperature compensated range | -10°C~40°C | Nonlinearity | 0.2%F.S. |
| Operating temperature range | -20°C~60°C | Hysteresis | 0.2%F.S. |
| Temperature Effect on Output | 0.05%F.S. / 10°C | Repeatability | 0.2%F.S. |
| Temperature Effect on Zero | 0.05%F.S. / 10°C | Creep (30 min) | 0.2%F.S./30min |
| Input impedance | 410±50Ω | Zero balance | ±2%F.S. |
| Output impedance | 350±5Ω | Recommended excitation voltage | 5-10V DC |
| Insulation resistance | ≥5000MΩ / 100VDC | Safe overload | 120%F.S. |
| Material | Aluminum alloy / Alloy steel | Limit overload | – |
| Protection class | IP64 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

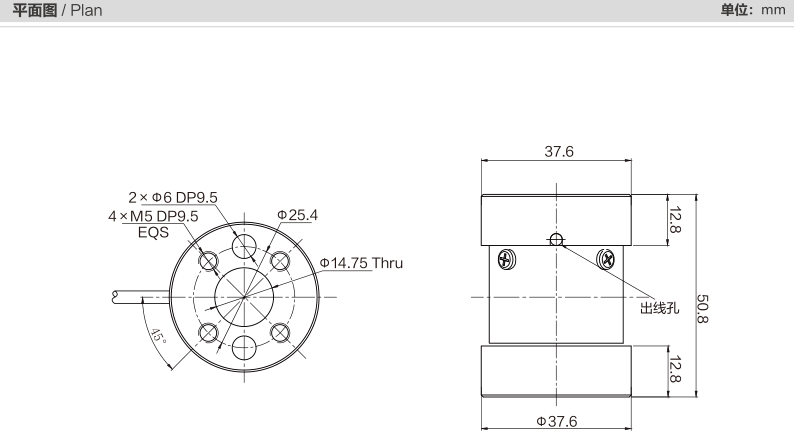

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK908?
Torque testing of electric motors, engines and rail traction; EV motor and gearbox benches; wind-turbine main shafts and gearboxes; robot joints and automated tightening tools; CNC spindles; mining and marine drives.
Which indicator, transmitter or system works with the MK908?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
