Overview

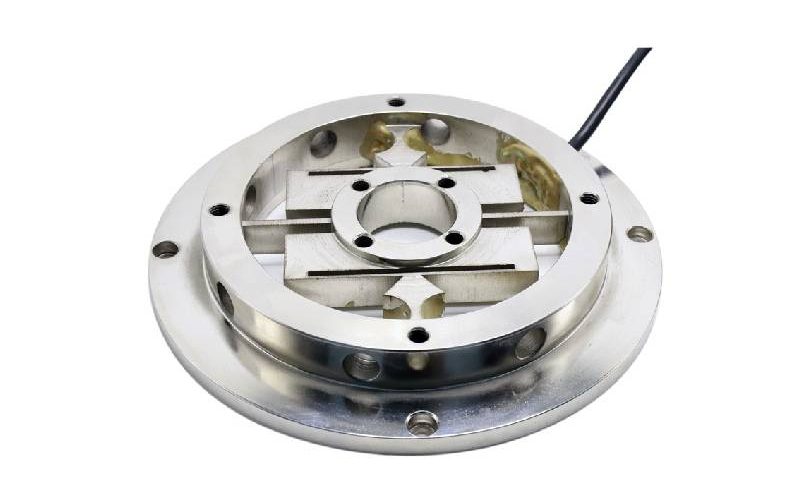

The MK905 is a torque sensor machined from high-strength alloy structural steel, with strong immunity to external electromagnetic interference and good overload tolerance for stable, long service life. It mounts simply and gives dependable output in demanding measurement duty, supporting continuous industrial use.
Key Features
- High-strength alloy-steel body
- Strong immunity to electromagnetic interference
- Good overload resistance and long life
- High accuracy (±0.05%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Standard output 1.5mV/V, compatible with common indicators
Applications
Intended for measurement and control on rubber-testing equipment and instruments, as well as general rotary and static torque monitoring.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 10N.m, 15N.m | Output sensitivity | 1.5mV/V |
| Temperature compensated range | -10°C~40°C | Nonlinearity / Repeatability | ±0.05%F.S |
| Operating temperature range | -20°C~60°C | Hysteresis | ±0.05%F.S |
| Temperature Effect on Output | ±0.1%F.S/10°C | Creep (30 min) | ±0.05%F.S/30min |
| Temperature Effect on Zero | ±0.2%F.S/10°C | Zero balance | ≤ ±1.0%F.S |
| Input impedance | 350 ± 5Ω | Recommended excitation voltage | 10V DC |
| Output impedance | 350 ± 2Ω | Safe overload | 120%F.S |
| Insulation resistance | ≥5000MΩ | Limit overload | – |
| Material | Alloy steel | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

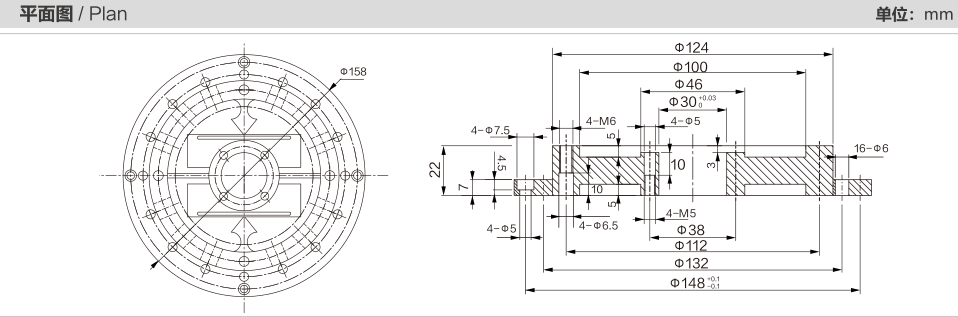

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK905?
Intended for measurement and control on rubber-testing equipment and instruments, as well as general rotary and static torque monitoring.
Which indicator, transmitter or system works with the MK905?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
