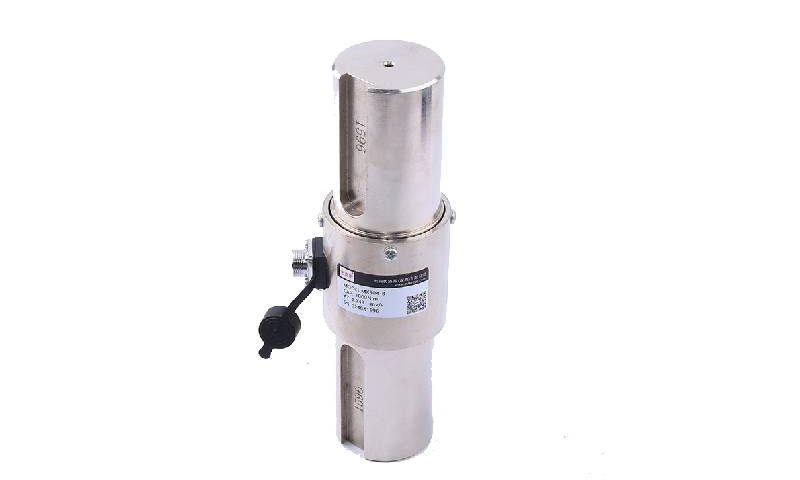

Overview
The MK904-B is a static torque sensor built on resistance strain-gauge measurement principles, offering high accuracy, dependable stability and a wide measurement range. Both shaft ends use key connections, making set-up and installation simple for torque measurement and control in static or non-continuous-rotation duty.
Key Features
- Strain-gauge principle, wide range
- Key connections at both ends
- For static and non-continuous rotation duty
- High accuracy (±0.1 / 0.3%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Standard output 1.0-1.5mV/V, compatible with common indicators
Applications
Suits assembly tightening checks, transmission-component test rigs and other applications measuring torque without continuous rotation.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | MK904-B: 200N.m, 300N.m, 500N.m, 1000N.m, 2000N.m MK904-C: 2000N.m, 3000N.m, 5000N.m | Output sensitivity | 1.0-1.5mV/V |
| Temperature compensated range | -10°C~40°C | Nonlinearity / Repeatability | ±0.1 / 0.3%F.S |
| Operating temperature range | -20°C~60°C | Hysteresis | ±0.1 / 0.3%F.S |
| Temperature Effect on Output | ±0.1 / 0.3%F.S/10°C | Creep (30 min) | ±0.1 / 0.3%F.S/30min |
| Temperature Effect on Zero | ±0.1 / 0.3%F.S/10°C | Zero balance | ≤ ±1.0%F.S |
| Input impedance | 700±10Ω / 350±10Ω | Recommended excitation voltage | 10V DC |
| Output impedance | 700±5Ω / 350±5Ω | Safe overload | 120%F.S |
| Insulation resistance | ≥2000MΩ | Limit overload | – |
| Material | Alloy steel | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

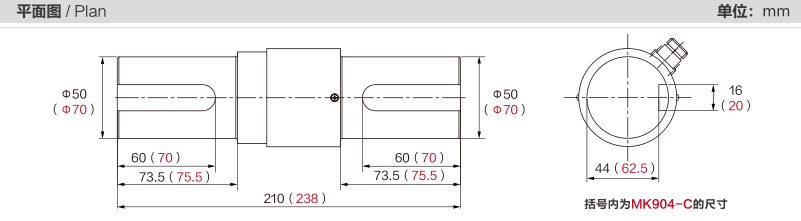

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK904-B?
Suits assembly tightening checks, transmission-component test rigs and other applications measuring torque without continuous rotation.
Which indicator, transmitter or system works with the MK904-B?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
