Overview

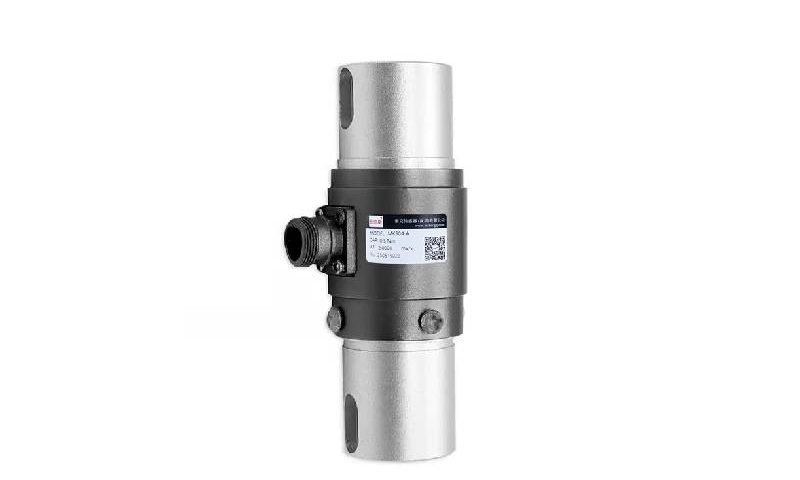

The MK904-A is a strain-gauge torque sensor designed for static torque measurement. Both ends use key connections for simple, reliable mounting, and it delivers high accuracy, stable performance and a wide measurement range.
Key Features
- High accuracy (±0.1 / 0.2 / 0.3%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Standard output 1.0-2.0mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Intended for measuring and controlling torque in static and non-continuous-rotation applications such as assembly and fastening.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 0.5N.m, 1N.m, 2N.m, 5N.m, 10N.m, 20N.m, 50N.m, 100N.m, 200N.m | Output sensitivity | 1.0-2.0mV/V |
| Temperature compensated range | -10°C~40°C | Nonlinearity / Repeatability | ±0.1 / 0.2 / 0.3%F.S |
| Operating temperature range | -20°C~60°C | Hysteresis | ±0.1 / 0.2 / 0.3%F.S |
| Temperature Effect on Output | ±0.1 / 0.2 / 0.3%F.S | Creep (30 min) | ±0.1 / 0.2 / 0.3%F.S/30min |
| Temperature Effect on Zero | ±0.2%F.S/10°C | Zero balance | ≤ ±1.0%F.S |
| Input impedance | 700±10Ω / 350±10Ω | Recommended excitation voltage | 10V DC |
| Output impedance | 700±5Ω / 350±5Ω | Safe overload | 120%F.S |
| Insulation resistance | ≥5000MΩ | Limit overload | – |
| Material | Alloy steel | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

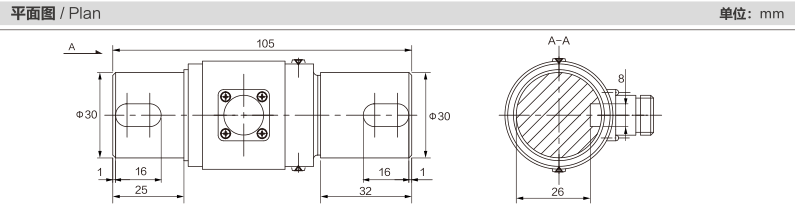

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK904-A?
Intended for measuring and controlling torque in static and non-continuous-rotation applications such as assembly and fastening.
Which indicator, transmitter or system works with the MK904-A?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
