Overview

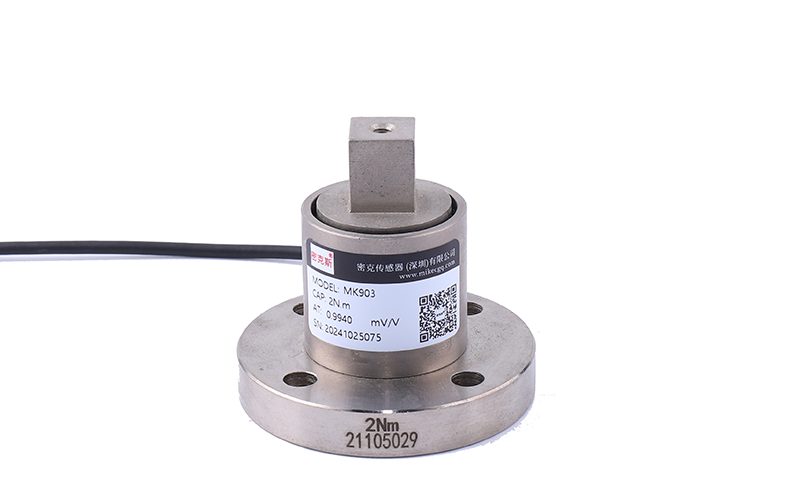

The MK903 and MK903-T are torque sensors intended for static and non-continuous rotary torque measurement and control. They combine high accuracy and stable performance with convenient installation, converting applied mechanical torque into a precise signal so drive-train and assembly equipment can be verified and tuned.
Key Features
- For static and non-continuous rotation torque
- High accuracy with stable output
- Convenient, simple installation
- Real-time torque-to-signal conversion
- High accuracy (±0.1/0.2/0.3%F.S) for precise measurement
- High-quality alloy steel elastic element for durability and corrosion resistance
Applications
New-energy vehicle motor and transmission test benches, wind turbine load monitoring, robot joint and bolt-tightening equipment, and CNC machine spindle torque checks.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | MK903 2N.m, 5N.m, 10N.m, 20N.m, 50N.m, 100N.m, 200N.m, 300N.m, 500N.m, 1000N.m, 2000N.m, 3000N.m MK903-T 2000N.m | Output sensitivity | 1.0-2.0mV/V |
| Temperature compensated range | -10°C~40°C | Nonlinearity | ±0.1/0.2/0.3%F.S |
| Operating temperature range | -20°C~60°C | Hysteresis | ±0.1/0.2/0.3%F.S |
| Temperature Effect on Output | ±0.1/0.2/0.3%F.S/10°C | Repeatability | ±0.1/0.2/0.3%F.S |
| Temperature Effect on Zero | ±0.1/0.2/0.3%F.S/10°C | Creep (30 min) | ±0.1/0.2/0.3%F.S/30min |
| Input impedance | 350 ± 10Ω | Zero balance | ≤ ±1.0%F.S |
| Output impedance | 350 ± 2Ω | Recommended excitation voltage | 10V DC |
| Insulation resistance | ≥5000MΩ | Safe overload | 120%F.S |
| Material | High-quality alloy steel | Limit overload | – |

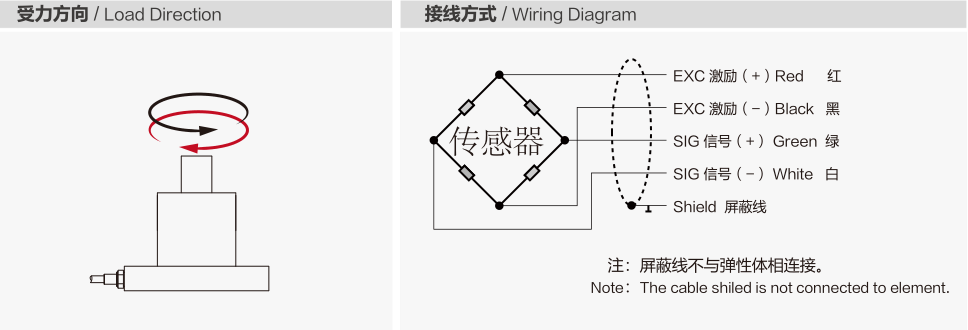

| Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) | ||

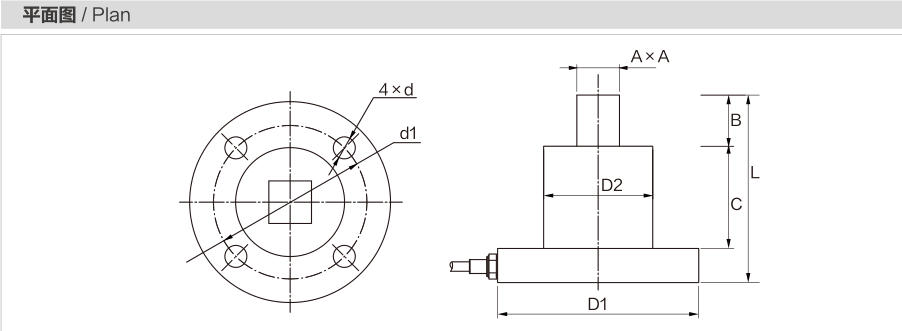

Dimension Drawing
Dimensions (mm)
| Model | Capacity (N.m) | A | B | C | D1 | D2 | d | d1 | L |
|---|---|---|---|---|---|---|---|---|---|
| MK903 | 2~200 | 12.5 | 15 | 30 | 59 | 32 | 6.5 | 45 | 55 |
| 300~1.5k | 25.4 | 24 | 40 | 68 | 40 | 8.5 | 55 | 75 | |
| 2k~3k | 44 | 98 | 56 | 13 | 80 | 85 | |||
| MK903-T | 2k |
Frequently Asked Questions
What are the typical applications of the MK903?
New-energy vehicle motor and transmission test benches, wind turbine load monitoring, robot joint and bolt-tightening equipment, and CNC machine spindle torque checks.
Which indicator, transmitter or system works with the MK903?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
