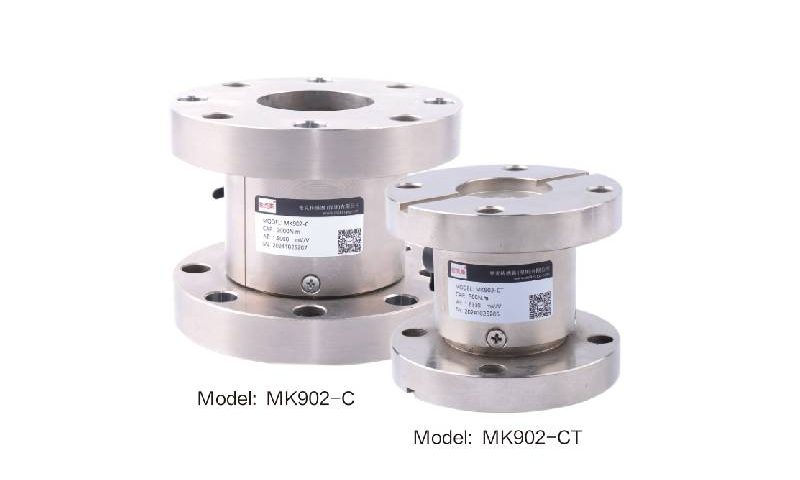

Overview
The MK902-C is a torque sensor intended for static and non-continuous rotation applications, where a reaction shaft or slowly turning member must be measured and controlled rather than monitored at speed. It combines good accuracy with stable output and simple mounting, so it suits bench and assembly use as readily as in-plant checks.
Key Features
- For static and intermittent rotation torque
- Stable output with straightforward installation
- High accuracy (±0.1 / 0.3%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Standard output 1.0-2.0mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Used for static torque measurement and control in assembly, bolt-tightening and test-rig duties, including drivetrain and joint development checks.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | MK902-C 500N.m, 1kN.m, 2kN.m, 3kN.m, 5kN.m, 10kN.m, 20kN.m, 30kN.m MK902-CT 100N.m, 200N.m, 300N.m, 500N.m, 1000N.m | Output sensitivity | 1.0-2.0mV/V |
| Temperature compensated range | -10°C~40°C | Nonlinearity | ±0.1 / 0.3%F.S |
| Operating temperature range | -20°C~60°C | Hysteresis | ±0.1 / 0.3%F.S |
| Temperature Effect on Output | ±0.1 / 0.3%F.S/10°C | Repeatability | ±0.1 / 0.3%F.S |
| Temperature Effect on Zero | ±0.1 / 0.3%F.S/10°C | Creep (30 min) | ±0.1 / 0.3%F.S/30min |
| Input impedance | 700±10Ω / 350±10Ω | Zero balance | ≤ ±1.0%F.S |
| Output impedance | 700±5Ω / 350±5Ω | Recommended excitation voltage | 10V DC |
| Insulation resistance | ≥5000MΩ | Safe overload | 120%F.S |
| Material | Alloy steel | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

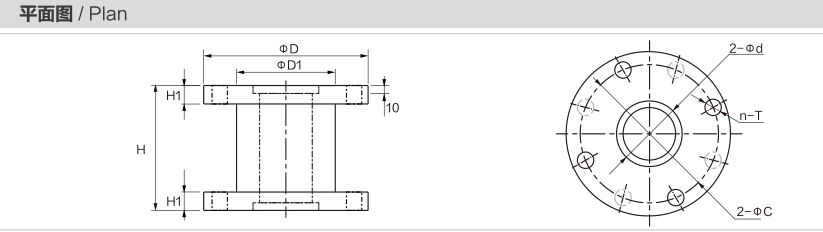

Dimension Drawing
Dimensions (mm)
| Model | Capacity (N.m) | D | D1 | d | C | H | H1 | n | T |
|---|---|---|---|---|---|---|---|---|---|
| MK902-C | 500~5000 | 125 | 78 | 50 | Φ105 | 96 | 20 | 16 | Φ13 |
| 10k | 158 | 95 | 80 | Φ130 | 110 | 30 | 20 | M18 | |
| 20k~30k | 308 | 150 | 130 | Φ250 | 220 | 45 | 24 | M26 | |
| MK902-CT | 100~1000 | 98 | 58 | 40 | Φ80 | 80 | 15 | 8 | Φ11 |
Frequently Asked Questions
What are the typical applications of the MK902-C?
Used for static torque measurement and control in assembly, bolt-tightening and test-rig duties, including drivetrain and joint development checks.
Which indicator, transmitter or system works with the MK902-C?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
