Overview

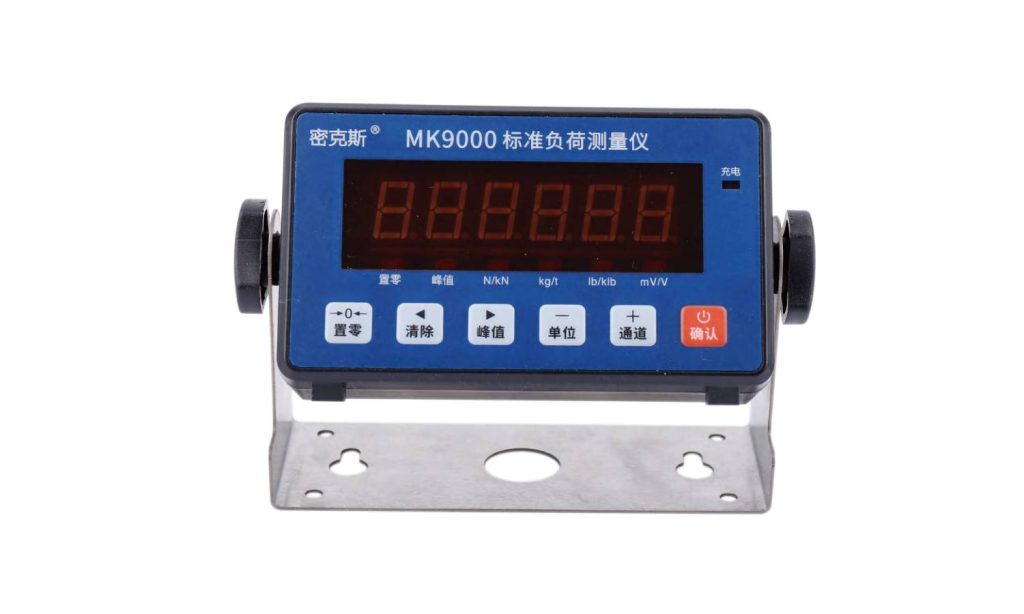

The MK9000 is a multi-channel standard load measuring instrument built for precision portable work, with combined accuracy, repeatability, and linearity all below 0.01% of full scale. Fast conversion and serial communication make it well suited to accurate force and weighing measurement in the lab or in the field.
Key Features
- Multi-channel load measurement
- Combined accuracy under 0.01% of full scale
- Rechargeable and portable for field use
- RS232 serial output
- High combined accuracy and excellent long-term stability
- Compact design for straightforward integration
Applications
Used for multi-point load-cell and force-sensor measurements in calibration, materials testing, and field precision weighing where a portable high-accuracy readout is needed.
| Technical Parameters | |||
|---|---|---|---|
| Operating voltage | MK9000 | Comprehensive accuracy | <0.01%FS |
| Repeatability, Linearity | <0.01%FS | Display divisions | 100,000~500,000 |
| A/D Conversion Speed rate | 50~500 times/second | mV/V measurement range | 0.01μV/V |
| Baud Rate | Supports 4800~115200 | Temperature Coefficient | <10ppm |
| Battery voltage | Powered by DC3.7V lithium battery, usage time approx. 10h | Printing interface | Serial print interface and standard RS232 communication interface |
Frequently Asked Questions
What are the typical applications of the MK9000?
Used for multi-point load-cell and force-sensor measurements in calibration, materials testing, and field precision weighing where a portable high-accuracy readout is needed.
Which indicator, transmitter or system works with the MK9000?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
