Overview

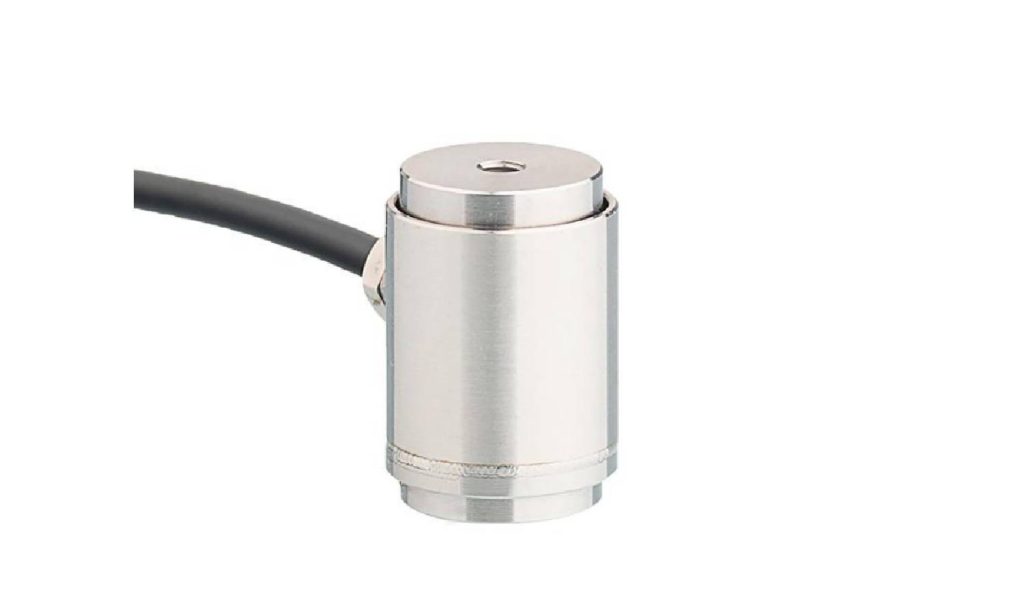

The MK824 is a miniature load cell that combines a small, light body with high accuracy, high sensitivity and strong stability. Low power draw, easy integration and good environmental tolerance make it a practical sensing element where space is tight.
Key Features
- High accuracy (±0.05%F.S / ±0.05%F.S) for precise measurement
- Stainless Steel elastic element for durability and corrosion resistance
- Standard output 2.0±10%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Suited to medical devices, robotics, consumer electronics and machinery for precision force and weight measurement in confined spaces.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 5kg 10kg 20kg 50kg | Output sensitivity | 2.0±10%mV/V |
| Temperature compensated range | -10°C~40°C | Nonlinearity / Repeatability | ±0.05%F.S / ±0.05%F.S |
| Operating temperature range | -20°C~60°C | Hysteresis | ±0.05%F.S |
| Temperature Effect on Output | ±0.1%F.S/10°C | Creep (30 min) | ±0.5%F.S/30min |
| Temperature Effect on Zero | ±0.1%F.S/10°C | Zero balance | ≤±2.0%F.S |
| Input impedance | 350±10Ω | Recommended excitation voltage | 10V DC |
| Output impedance | 350±3Ω | Safe overload | 120%F.S |
| Insulation resistance | ≥5000MΩ / 100VDC | Limit overload | – |
| Material | Stainless Steel | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

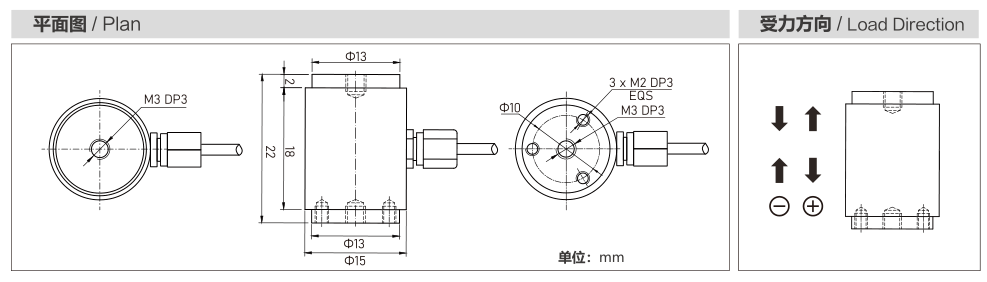

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK824?
Suited to medical devices, robotics, consumer electronics and machinery for precision force and weight measurement in confined spaces.
Which indicator, transmitter or system works with the MK824?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
