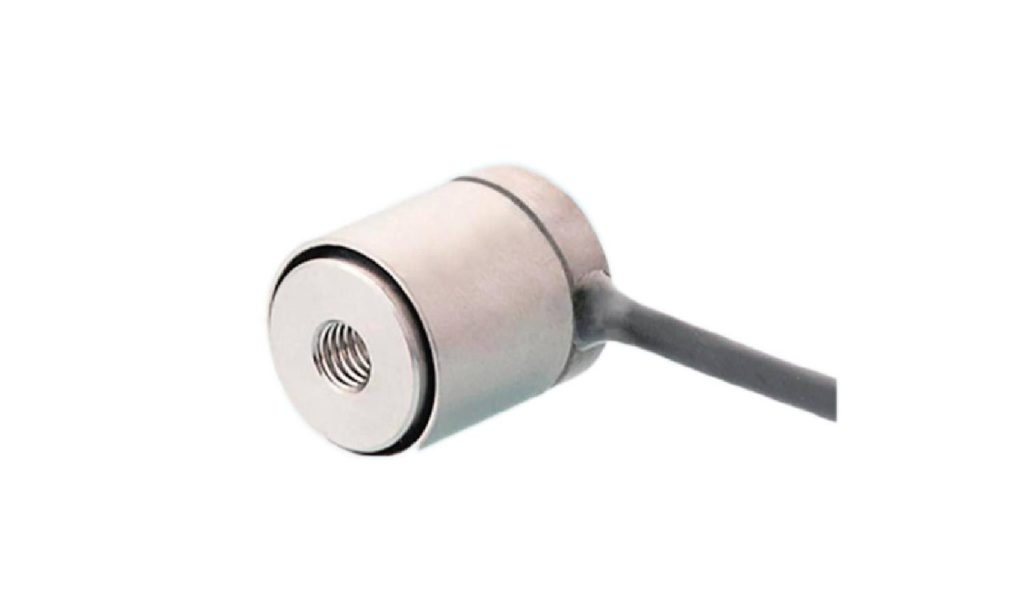

Overview
The MK822 is a miniature load cell that pairs a small, light body with high sensitivity, high accuracy and dependable stability, so it can be designed straight into tight assemblies rather than added around them. Low power consumption and a construction suited to volume manufacture make it easy to standardise across a product family.
Key Features
- Compact, lightweight design for easy integration
- High sensitivity with stable output
- Low power consumption
- Suited to volume manufacture
- High accuracy (±0.1%F.S / ±0.1%F.S) for precise measurement
- Stainless Steel elastic element for durability and corrosion resistance
Applications
Chosen for medical devices, robots, consumer electronics and machinery where precision force or weight sensing must fit a confined space.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 0~5 10 20 30 50kg | Output sensitivity | 1.5±10%mV/V |
| Temperature compensated range | -10°C~40°C | Nonlinearity / Repeatability | ±0.1%F.S / ±0.1%F.S |
| Operating temperature range | -20°C~60°C | Hysteresis | ±0.1%F.S |
| Temperature Effect on Output | <0.10%F.S/10°C | Creep (30 min) | ±0.1%F.S/30min |
| Temperature Effect on Zero | <0.10%F.S/10°C | Zero balance | ≤±2.0%F.S |
| Input impedance | 350±10Ω | Recommended excitation voltage | 3~5V DC |
| Output impedance | 350±3Ω | Safe overload | 120%F.S |
| Insulation resistance | ≥5000MΩ / 100VDC | Limit overload | – |
| Material | Stainless Steel | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

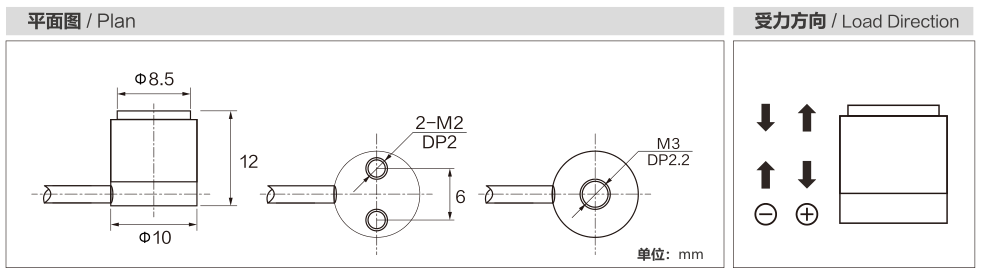

Dimension Drawing
