Overview

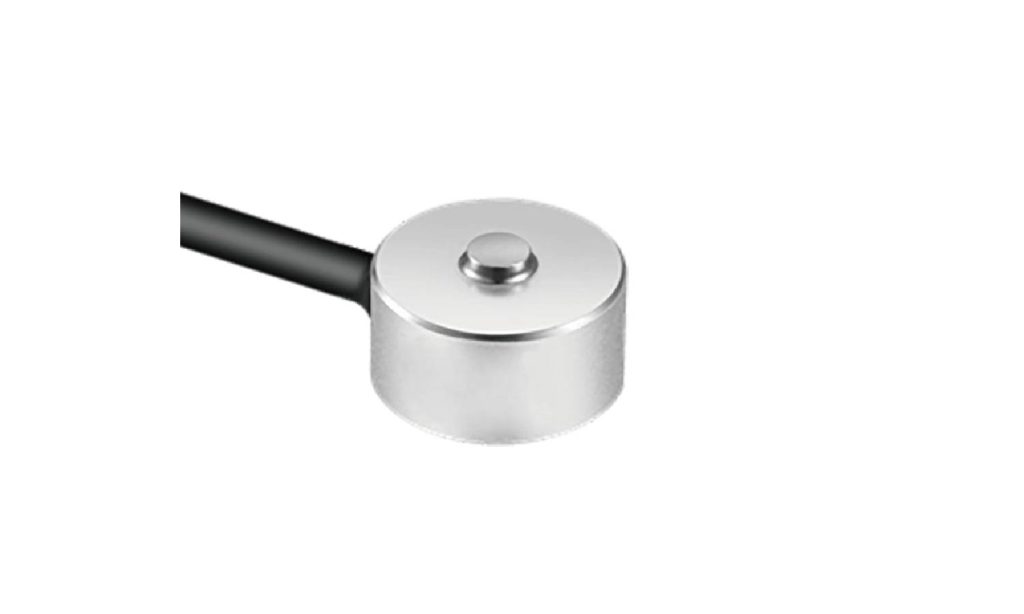

The MK820 is a miniature load cell that packs high accuracy and high sensitivity into a small, lightweight housing. Its compact size and strong stability make it easy to integrate into space-constrained instruments, and it holds reliable output across varying environments.
Key Features
- Miniature, lightweight, easy to integrate
- High accuracy with high sensitivity
- Strong stability and environmental tolerance
- High accuracy (±1%F.S.) for precise measurement
- See reference table elastic element for durability and corrosion resistance
- Sealed to IP65 for reliable operation in harsh environments
Applications
Commonly built into medical devices, robotics, consumer electronics, and compact machinery for precision force and weight measurement where space is limited.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 30N 50N 100N 200N 300N 500N 1kN | Output sensitivity | 1.0±10%mV/V |
| Temperature compensated range | -10°C~40°C | Nonlinearity | ±1%F.S. |
| Operating temperature range | -20°C~60°C | Hysteresis | ±0.5%F.S. |
| Temperature Effect on Output | <0.5%F.S./10°C | Repeatability | ±0.5%F.S. |
| Temperature Effect on Zero | <0.5%F.S./10°C | Creep (30 min) | ±0.05%F.S./30min |
| Input impedance | 1030±80Ω | Zero balance | ≤±0.1mV/V |
| Output impedance | 1030±80Ω | Recommended excitation voltage | 5V DC |
| Insulation resistance | ≥5000MΩ / 100VDC | Safe overload | ±120%F.S. |
| Material | See reference table | Limit overload | – |
| Protection class | IP65 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

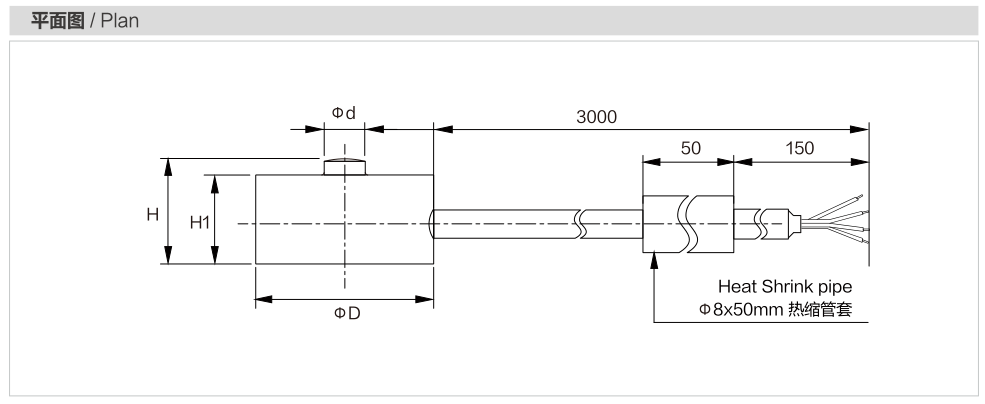

Dimension Drawing
Dimensions (mm)
| Model | Capacity (kN) | Capacity (kg) | ΦD | Φd | H | H1 | Material |
|---|---|---|---|---|---|---|---|
| MK820 | 30 | 3 | 10 | 1 | 6 | 5.2 | Aluminum alloy |
| 50 / 100 | 5 / 10 | 1.5 | Stainless steel | ||||
| 200 / 300 | 20 / 30 | 2 | |||||
| 500 / 1000 | 50 / 100 | 2.5 |
Frequently Asked Questions
What are the typical applications of the MK820?
Commonly built into medical devices, robotics, consumer electronics, and compact machinery for precision force and weight measurement where space is limited.
Which indicator, transmitter or system works with the MK820?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
