Overview
Compact and lightweight, the MK818 miniature load cell offers high accuracy, high sensitivity and stable output in a small envelope. It adapts well to changing environments and integrates easily, making it a good fit for space-limited measurement designs.
Key Features
- High accuracy (±0.5%F.S / ±0.1%F.S) for precise measurement
- Stainless Steel elastic element for durability and corrosion resistance
- Standard output 1.5±10%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Commonly used in medical equipment, robotic systems, consumer electronics and machinery where precise force measurement must fit into tight spaces.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 50kg 100kg 300kg 1000kg | Output sensitivity | 1.5±10%mV/V |
| Temperature compensated range | -10°C~40°C | Nonlinearity / Repeatability | ±0.5%F.S / ±0.1%F.S |
| Operating temperature range | -20°C~60°C | Hysteresis | ±0.5%F.S |
| Temperature Effect on Output | ±0.5%F.S/10°C | Creep (30 min) | ±0.5%F.S/30min |
| Temperature Effect on Zero | ±0.5%F.S/10°C | Zero balance | ≤±2.0%F.S |
| Input impedance | 350±10Ω | Recommended excitation voltage | 5~10V DC |
| Output impedance | 350±5Ω | Safe overload | 120%F.S |
| Insulation resistance | ≥5000MΩ / 100VDC | Limit overload | – |
| Material | Stainless Steel | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

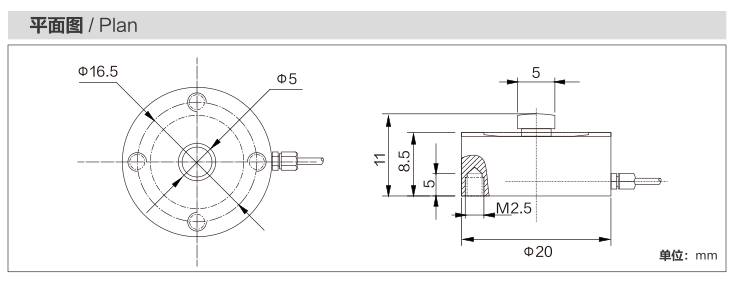

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK818?
Commonly used in medical equipment, robotic systems, consumer electronics and machinery where precise force measurement must fit into tight spaces.
Which indicator, transmitter or system works with the MK818?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
