Overview

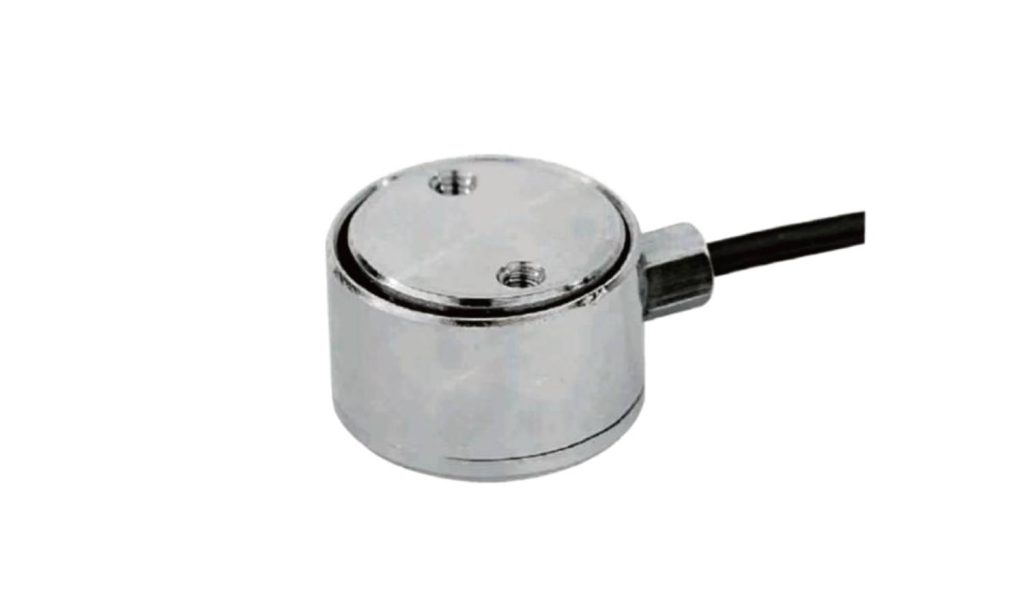

Sensitive, small and light, the MK817 is a miniature load cell designed for low-power duty and straightforward integration into assembled equipment. It pairs high accuracy with long-term stability and broad environmental tolerance, and its multi-purpose construction suits volume manufacture, giving tight enclosures dependable force and weight feedback.
Key Features
- High accuracy (±0.02%F.S / ±0.02%F.S) for precise measurement
- Stainless Steel elastic element for durability and corrosion resistance
- Standard output 2.0±10%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Robotics, medical instruments, consumer electronics and smart-home devices, plus compact machinery on industrial production lines.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 10N 20N 50N 100N 200N | Output sensitivity | 2.0±10%mV/V |
| Temperature compensated range | -10°C~40°C | Nonlinearity / Repeatability | ±0.02%F.S / ±0.02%F.S |
| Operating temperature range | -20°C~60°C | Hysteresis | ±0.02%F.S |
| Temperature Effect on Output | ±0.02%F.S/10°C | Creep (30 min) | ±0.02%F.S/30min |
| Temperature Effect on Zero | ±0.02%F.S/10°C | Zero balance | ≤±2.0%F.S |
| Input impedance | 650/350±10Ω | Recommended excitation voltage | 10V DC |
| Output impedance | 650/350±3Ω | Safe overload | 120%F.S |
| Insulation resistance | ≥5000MΩ / 100VDC | Limit overload | – |
| Material | Stainless Steel | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

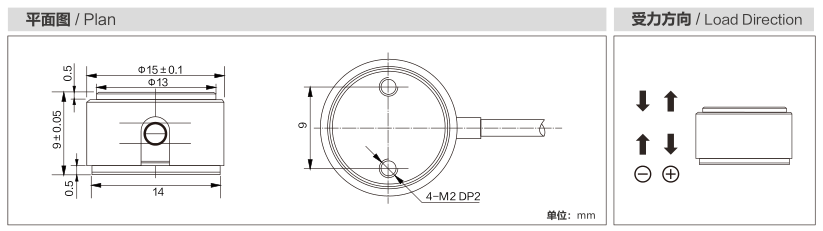

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK817?
Robotics, medical instruments, consumer electronics and smart-home devices, plus compact machinery on industrial production lines.
Which indicator, transmitter or system works with the MK817?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
