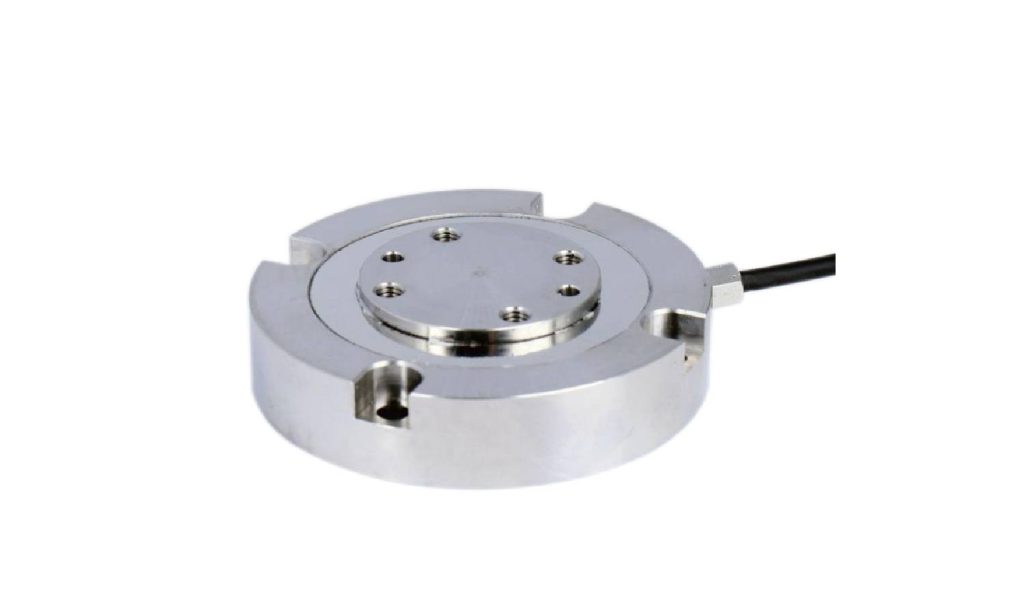

Overview
Small size and low weight are the working premise of the MK816 miniature load cell, which still delivers high accuracy, high sensitivity and long-term steadiness inside space-constrained assemblies. Environmental tolerance is built in, and the cell integrates cleanly into instruments destined for batch production.
Key Features
- Integrates into confined mechanical designs
- High accuracy with strong environmental tolerance
- Reliable in mass-produced instruments
- High accuracy (±0.5%F.S / ±0.1%F.S) for precise measurement
- Stainless steel elastic element for durability and corrosion resistance
- Standard output 0.5mV/V (0~5kg) 1.0~1.5mV/V (10~100kg), compatible with common indicators
Applications
Typical of force and weight sensing in medical equipment, robotic grippers, consumer products and compact automation machinery.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 10kg 20kg 50kg 100kg | Output sensitivity | 0.5mV/V (0~5kg) 1.0~1.5mV/V (10~100kg) |
| Temperature compensated range | -10°C~40°C | Nonlinearity / Repeatability | ±0.5%F.S / ±0.1%F.S |
| Operating temperature range | -20°C~60°C | Hysteresis | ±0.5%F.S |
| Temperature Effect on Output | ±0.2%F.S/10°C | Creep (30 min) | ±0.2%F.S/30min |
| Input impedance | 350±10Ω (1000±100Ω) | Zero balance | ≤±2.0%F.S |
| Output impedance | 350±5Ω (1000±100Ω) | Recommended excitation voltage | 5V DC |
| Insulation resistance | ≥5000MΩ / 100VDC | Safe overload | 120%F.S |
| Material | Stainless steel | Limit overload | – |
| Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) | ||

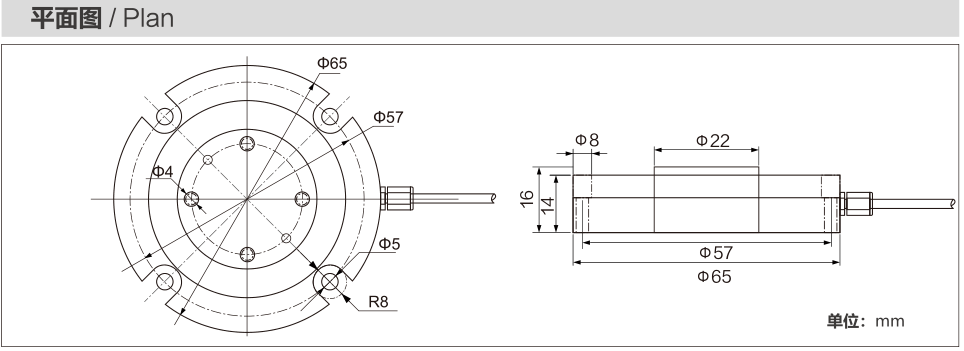

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK816?
Typical of force and weight sensing in medical equipment, robotic grippers, consumer products and compact automation machinery.
Which indicator, transmitter or system works with the MK816?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
