Overview
Engineered for space-constrained precision, the MK815 miniature load cell offers a tiny, light package with high sensitivity, accuracy and reliability. Its low-power, robust design simplifies integration and volume deployment across compact instruments.
Key Features
- Miniature, lightweight housing
- High sensitivity with low power draw
- Reliable for integrated, high-volume use
- High accuracy (±0.5%F.S / ±0.1%F.S) for precise measurement
- Stainless Steel elastic element for durability and corrosion resistance
- Standard output 1.5±10%mV/V, compatible with common indicators
Applications
Well suited to medical equipment, robotics, consumer electronics and industrial machinery requiring miniature force or weight sensing.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 50kg 100kg 300kg 1000kg | Output sensitivity | 1.5±10%mV/V |
| Temperature compensated range | -10°C~40°C | Nonlinearity / Repeatability | ±0.5%F.S / ±0.1%F.S |
| Operating temperature range | -20°C~60°C | Hysteresis | ±0.5%F.S |
| Temperature Effect on Output | ±0.5%F.S/10°C | Creep (30 min) | ±0.5%F.S/30min |
| Temperature Effect on Zero | ±0.5%F.S/10°C | Zero balance | ≤±2.0%F.S |
| Input impedance | 350±10Ω | Recommended excitation voltage | 5~10V DC |
| Output impedance | 350±5Ω | Safe overload | 120%F.S |
| Insulation resistance | ≥5000MΩ / 100VDC | Limit overload | – |
| Material | Stainless Steel | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

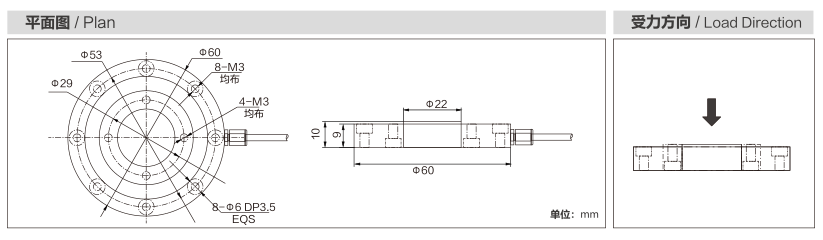

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK815?
Well suited to medical equipment, robotics, consumer electronics and industrial machinery requiring miniature force or weight sensing.
Which indicator, transmitter or system works with the MK815?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
