Overview

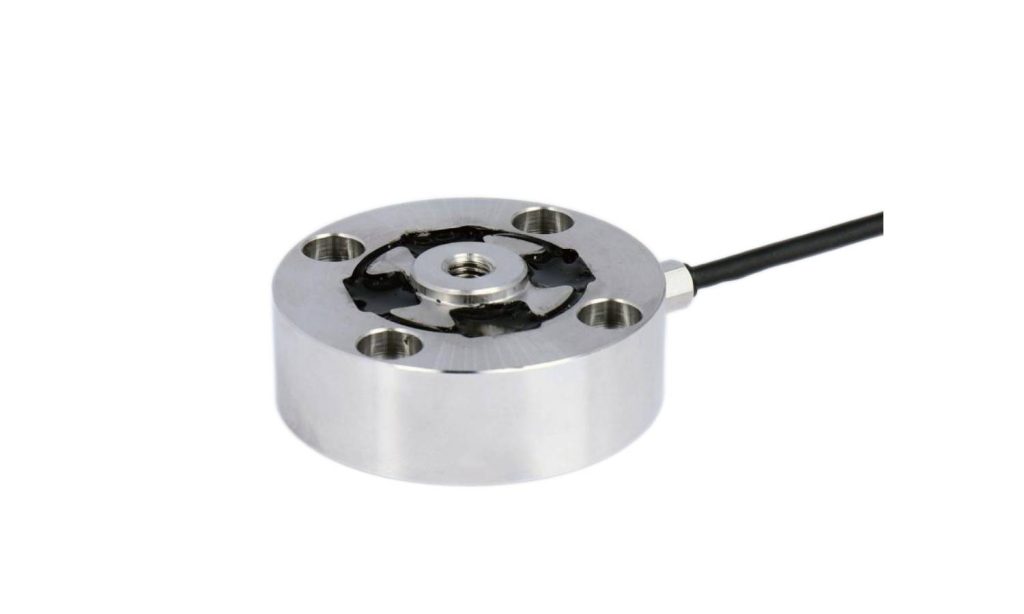

Engineered for tight, low-mass weighing points, the MK814 is a miniature load cell offering high accuracy, high sensitivity, and dependable stability. Its small, lightweight body integrates cleanly into compact devices and keeps measurement reliable even as conditions change, suiting force and weight sensing where space is at a premium.
Key Features
- Compact, lightweight miniature build
- High sensitivity and measurement accuracy
- Consistent output in changing environments
- High accuracy (±0.02%F.S / ±0.02%F.S) for precise measurement
- Stainless Steel elastic element for durability and corrosion resistance
- Standard output 2.0±10%mV/V, compatible with common indicators
Applications
Applied in medical instruments, robotics, consumer electronics, and small automated equipment where miniature, space-saving force and weight sensing is required.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 0~300kg 500kg 1000kg 2000kg 3000kg | Output sensitivity | 2.0±10%mV/V |
| Temperature compensated range | -10°C~40°C | Nonlinearity / Repeatability | ±0.02%F.S / ±0.02%F.S |
| Operating temperature range | -20°C~60°C | Hysteresis | ±0.02%F.S |
| Temperature Effect on Output | ±0.05%F.S/10°C | Creep (30 min) | ±0.05%F.S/30min |
| Temperature Effect on Zero | ±0.05%F.S/10°C | Zero balance | ≤±2.0%F.S |
| Input impedance | 750±15Ω | Recommended excitation voltage | 5~10V DC |
| Output impedance | 700±5Ω | Safe overload | 120%F.S |
| Insulation resistance | ≥5000MΩ / 100VDC | Limit overload | – |
| Material | Stainless Steel | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

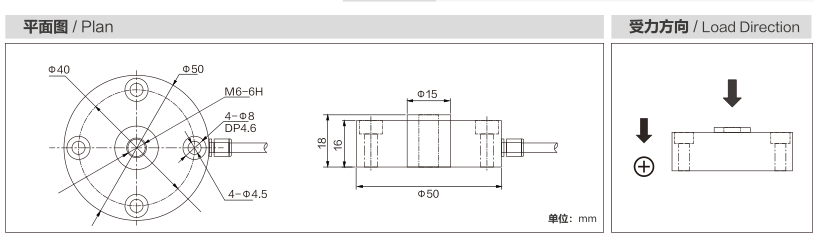

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK814?
Applied in medical instruments, robotics, consumer electronics, and small automated equipment where miniature, space-saving force and weight sensing is required.
Which indicator, transmitter or system works with the MK814?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
