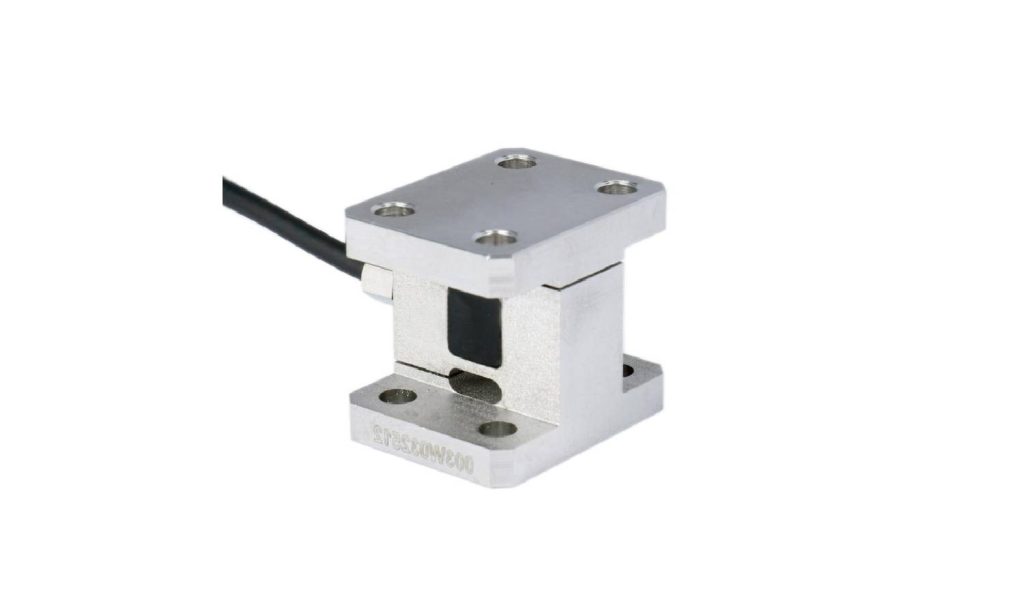

MK813 Miniature Load Cell

Overview

The MK813 miniature load cell is built for precision force measurement where space is limited: a compact, lightweight elastic element delivering high sensitivity, high accuracy and stable output. Its environmental tolerance and simple integration let it be embedded directly into finished products rather than bolted onto a conventional scale frame.

Key Features

Small size, low weight
High sensitivity, stable output
Low power design
Easy integration and mass production
High accuracy (±0.3%F.S) for precise measurement
Stainless Steel elastic element for durability and corrosion resistance

Applications

A good fit for medical devices, robotics, smart-home products and consumer electronics requiring force sensing in tight enclosures.

Technical Parameters
Rated capacity	0~5 10 20 30 50 100kg	Output sensitivity	2.0±10%mV/V
Temperature compensated range	-10°C~40°C	Nonlinearity	±0.3%F.S
Operating temperature range	-20°C~60°C	Hysteresis	±0.3%F.S
Temperature Effect on Output	±0.3%F.S/10°C	Repeatability	±0.3%F.S
Temperature Effect on Zero	±0.3%F.S/10°C	Creep (30 min)	±0.3%F.S/30min
Input impedance	350±10Ω	Zero balance	±2%F.S
Output impedance	350±5Ω	Recommended excitation voltage	3~10V DC
Insulation resistance	≥5000MΩ / 100VDC	Safe overload	Compression 200%F.S, Tension 150%F.S
Material	Stainless Steel	Limit overload	Compression 500%F.S, Tension 250%F.S
Protection class	IP65	Cable connection	Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-)

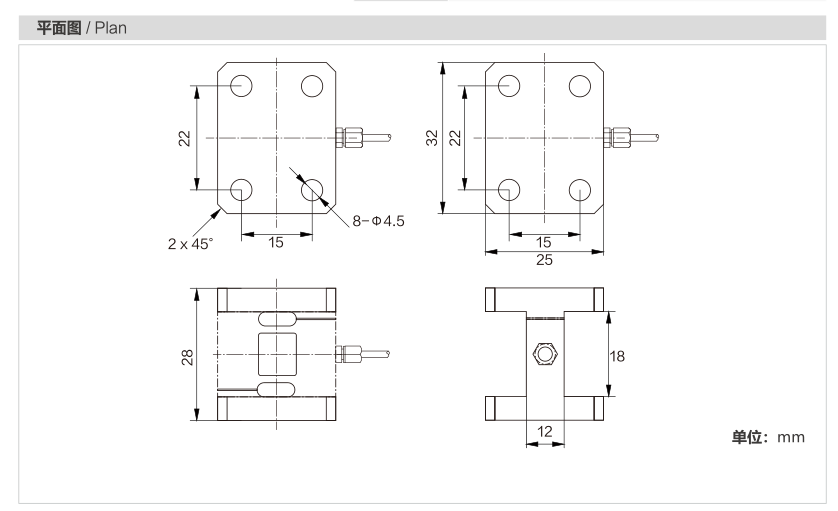

Dimension Drawing

Frequently Asked Questions

What are the typical applications of the MK813?

A good fit for medical devices, robotics, smart-home products and consumer electronics requiring force sensing in tight enclosures.

Which indicator, transmitter or system works with the MK813?

It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
