Overview

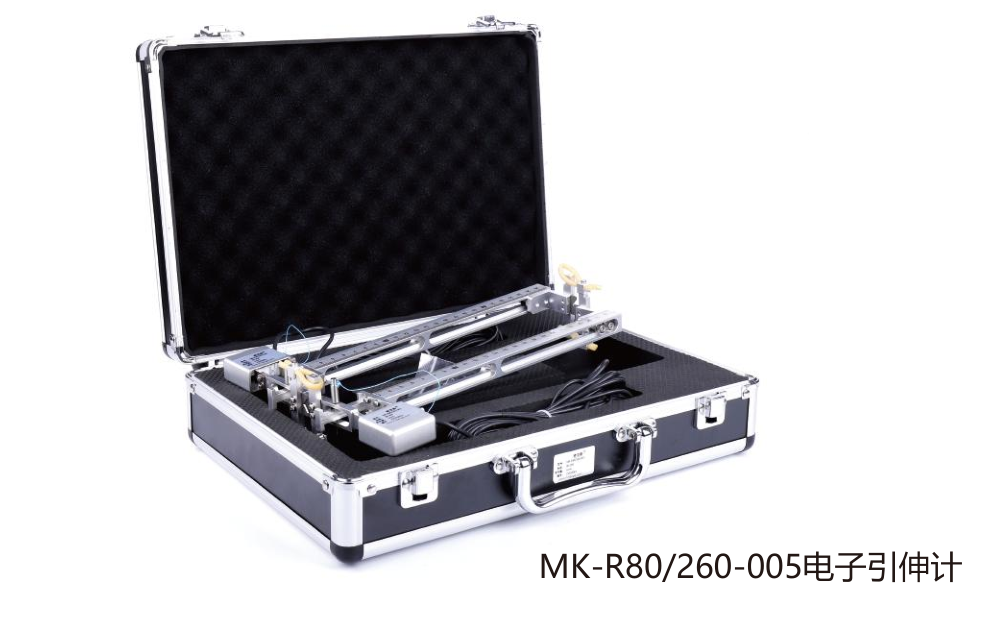

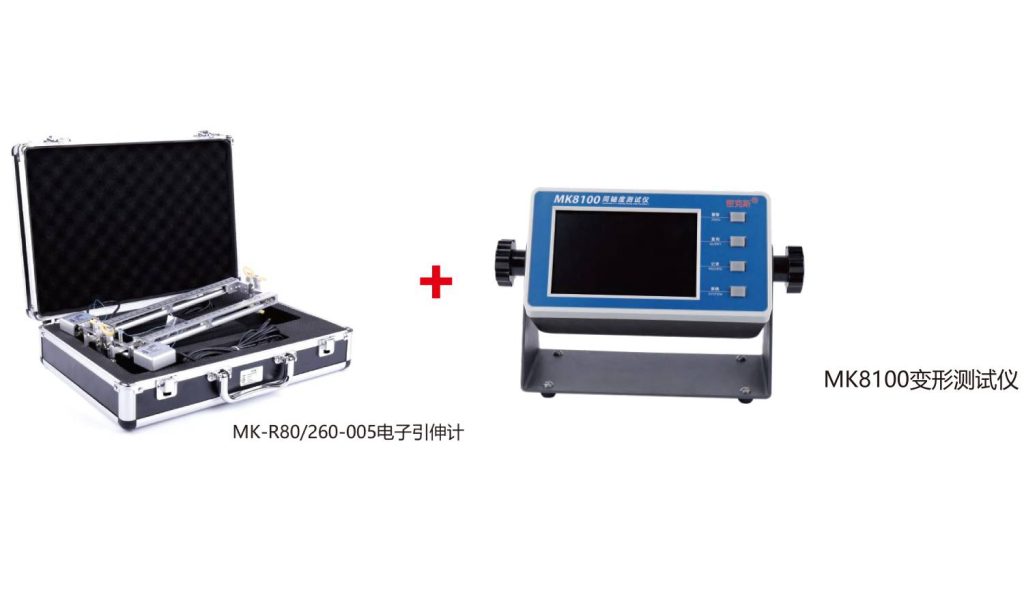

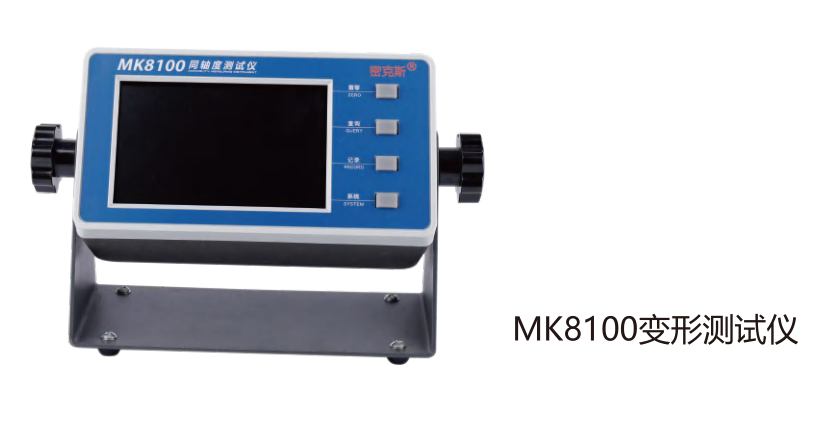

The MK8100 measures the residual deformation of mechanical rebar couplers using two matched high-accuracy electronic extensometers, mounted symmetrically to read the average deformation on both sides of the specimen for accurate results. Its self-contained, easy-to-fit design makes it a practical instrument for testing laboratories.
Key Features
- Dual matched high-accuracy extensometers
- Symmetric mounting for averaged readings
- Battery-powered, portable operation
- High combined accuracy and excellent long-term stability
- Compact design for straightforward integration
Applications
Intended for inspecting the deformation of mechanical splice joints in reinforcing bar, typically in testing and quality-inspection laboratories.
Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK8100?
Intended for inspecting the deformation of mechanical splice joints in reinforcing bar, typically in testing and quality-inspection laboratories.
Which indicator, transmitter or system works with the MK8100?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
