Overview

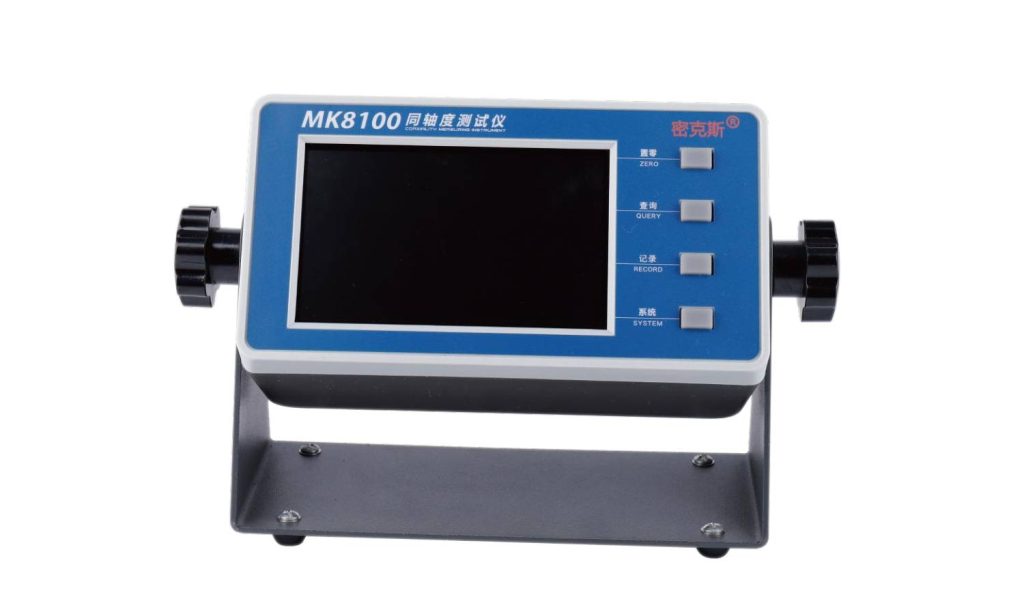

The MK8100 is a coaxiality tester that samples data and calculates results automatically with a microcomputer or dedicated software, showing deformation and coaxiality on two channels in real time. It offers very high display resolution, accuracy to about class 0.5, multi-segment linear correction and convenient elastic sample clamping.
Key Features
- Dual-channel real-time deformation and coaxiality display
- Automatic sampling and calculation with software
- Multi-segment linear correction
- Simple elastic sample clamping
- High accuracy (Class 0.5) for precise measurement
- Compact design for straightforward integration
Applications
Widely used in metrology and calibration departments and by makers of testing machines for coaxiality and alignment checks.
| Technical Parameters | |||
|---|---|---|---|
| Display resolution (mm) | 0.0001 | Extensometer Accuracy level | Class 0.5 |
| Physical channel | 2-Channel | AD Conversion speed | 12.5 Times / Second |
| Linear correction | Support 7-segment linear correction | Display | 5.0-inch high-definition capacitive touch screen |
| Rated working voltage | ~220V±10%, 50Hz | Non-linearity / Repeatability error | ≤±1% |
Frequently Asked Questions
What are the typical applications of the MK8100?
Widely used in metrology and calibration departments and by makers of testing machines for coaxiality and alignment checks.
Which indicator, transmitter or system works with the MK8100?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
