Overview

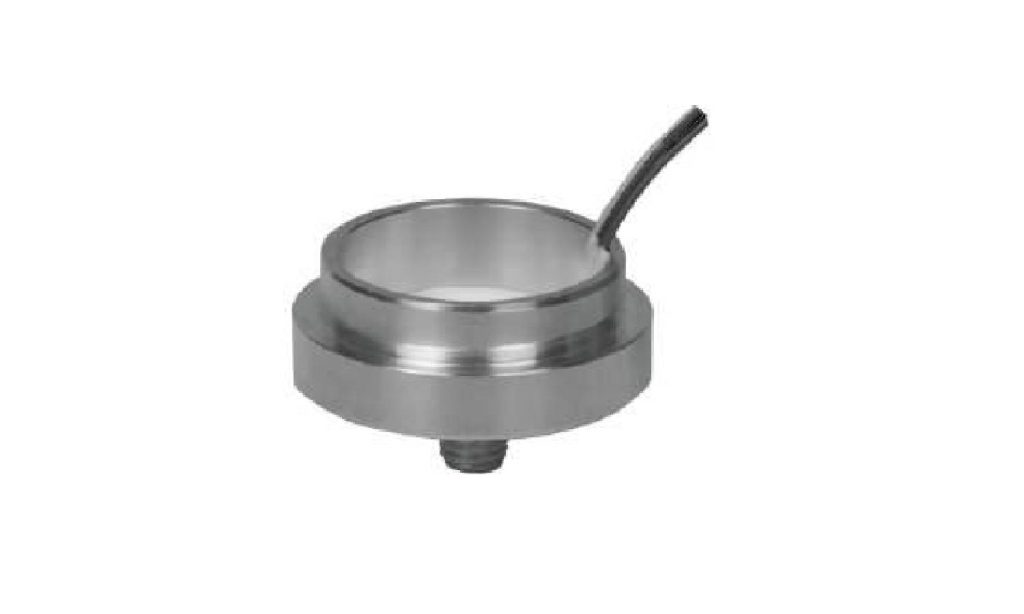

For precision weighing where the envelope is the binding constraint, the MK810 miniature load cell offers a compact, lightweight form with high sensitivity, high accuracy and stable output. Its low-power design suits electronic assemblies and repeatable batch manufacture, and performance holds as ambient conditions change.
Key Features
- High accuracy (±1.0%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Standard output 2.0±20%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Applied in medical instrumentation, robotics, consumer electronics and machinery that must sense force or weight inside very little room.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 200N(20kg) 500N(50kg) 1000N(100kg) | Output sensitivity | 2.0±20%mV/V |
| Temperature compensated range | – | Nonlinearity / Repeatability | ±1.0%F.S |
| Operating temperature range | -10°C~40°C | Hysteresis | ±1.0%F.S |
| Temperature Effect on Output | ±0.05%F.S/10°C | Creep (30 min) | ±1.0%F.S/30min |
| Temperature Effect on Zero | ±0.05%F.S/10°C | Zero balance | ≤±0.1%F.S |
| Input impedance | 395±10Ω | Recommended excitation voltage | ≤6V DC |
| Output impedance | 350±5Ω | Safe overload | 120%F.S |
| Insulation resistance | ≥2000MΩ / 50VDC | Limit overload | – |
| Material | Aluminum alloy | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

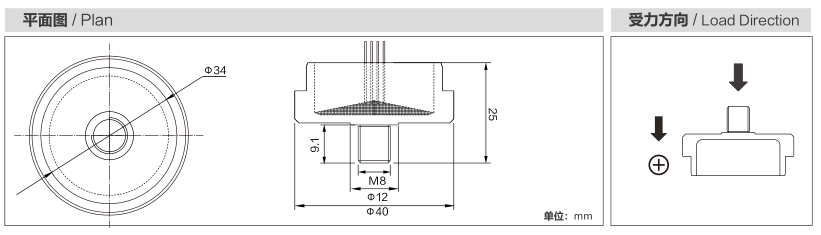

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK810?
Applied in medical instrumentation, robotics, consumer electronics and machinery that must sense force or weight inside very little room.
Which indicator, transmitter or system works with the MK810?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
