Overview

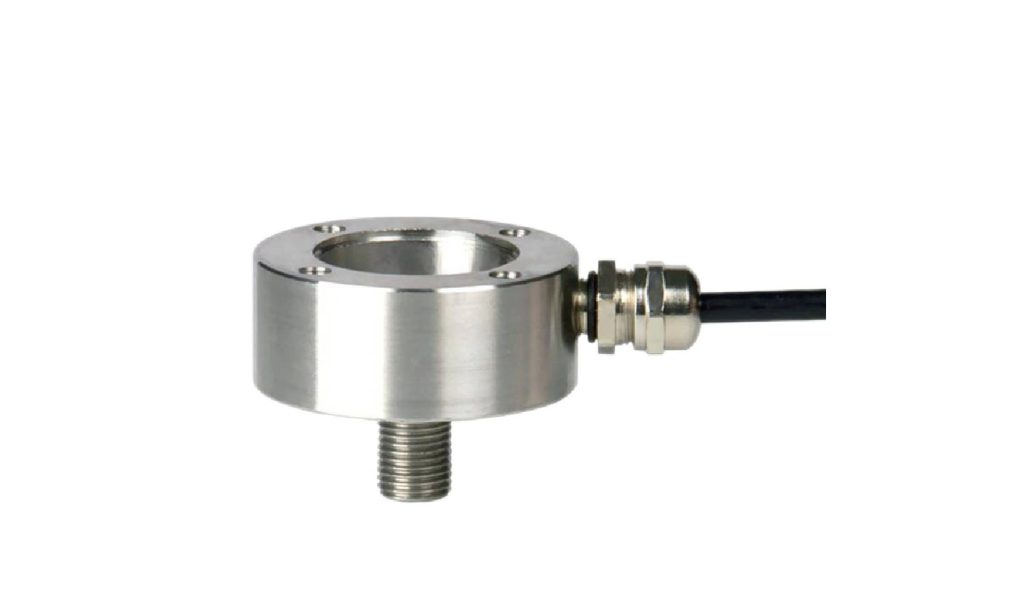

The MK809 is a miniature load cell delivering high sensitivity in a small, lightweight form with low power consumption. Its dependable, easy-to-integrate design suits precision weighing and force measurement where space is limited.
Key Features
- High accuracy (±0.1%F.S) for precise measurement
- Stainless Steel elastic element for durability and corrosion resistance
- Standard output 2.0±2%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Applied across industrial equipment, medical devices and smart-home or consumer products needing compact load sensing.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 1kN 2kN 3kN 5kN 10kN | Output sensitivity | 2.0±2%mV/V |
| Temperature compensated range | – | Nonlinearity / Repeatability | ±0.1%F.S |
| Operating temperature range | -10°C~40°C | Hysteresis | ±0.1%F.S |
| Temperature Effect on Output | ±0.05%F.S/10°C | Creep (30 min) | ±0.05%F.S/30min |
| Temperature Effect on Zero | ±0.05%F.S/10°C | Zero balance | ≤±0.1%F.S |
| Input impedance | 360±20Ω | Recommended excitation voltage | 6V DC |
| Output impedance | 350±10Ω | Safe overload | 120%F.S |
| Insulation resistance | ≥5000MΩ | Limit overload | – |
| Material | Stainless Steel | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

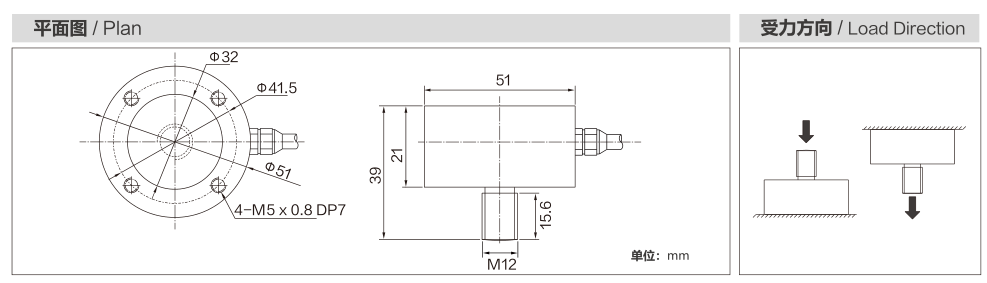

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK809?
Applied across industrial equipment, medical devices and smart-home or consumer products needing compact load sensing.
Which indicator, transmitter or system works with the MK809?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
