Overview

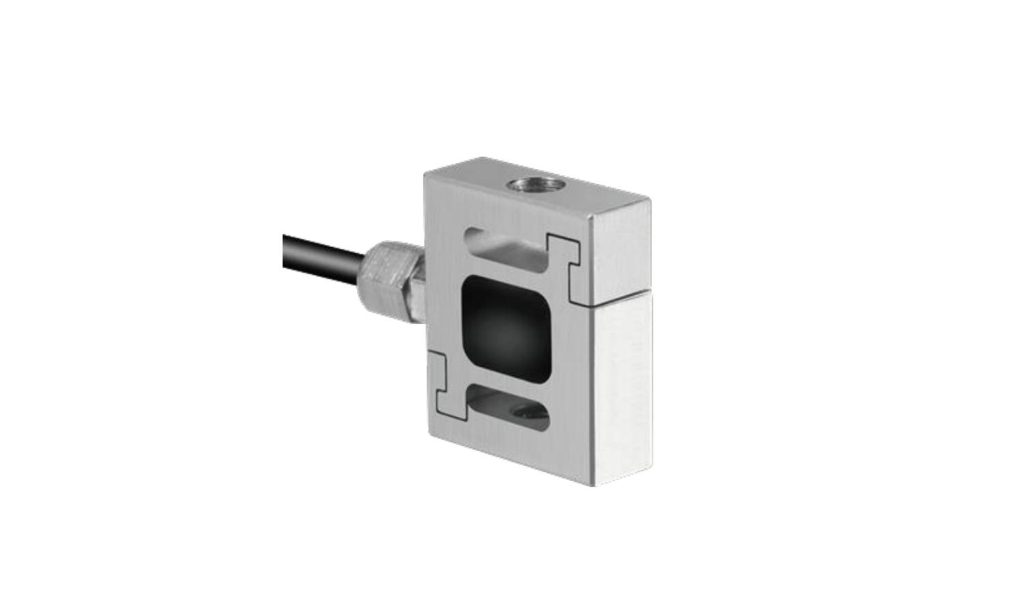

The MK808 is a precision miniature load cell with nonlinearity and hysteresis to 0.15% F.S for accurate small-force measurement. Its tiny, lightweight body and low power consumption make it straightforward to integrate into compact assemblies.
Key Features
- High accuracy (±0.15%F.S.) for precise measurement
- Stainless steel elastic element for durability and corrosion resistance
- Sealed to IP66 for reliable operation in harsh environments
- Standard output 1.5±10%mV/V 5N 2.0±10%mV/V ≥10N, compatible with common indicators
- Compact design for straightforward integration
Applications
Suited to robotics, medical devices, consumer electronics and industrial automation where space is limited and forces are small.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 5N 10N 20N 30N 50N 100N 200N 250N 300N 500N 1kN 2kN | Output sensitivity | 1.5±10%mV/V 5N 2.0±10%mV/V ≥10N |
| Temperature compensated range | -10°C~40°C | Nonlinearity | ±0.15%F.S. |
| Operating temperature range | -20°C~60°C | Hysteresis | ±0.1%F.S. |
| Temperature Effect on Output | ±0.05%F.S./10°C | Repeatability | ±0.1%F.S. |
| Temperature Effect on Zero | ±0.05%F.S./10°C | Creep (30 min) | ±0.1%F.S./30min |
| Input impedance | 380±30Ω | Zero balance | ≤±2%F.S. |
| Output impedance | 380±5Ω | Recommended excitation voltage | 5 10V DC |
| Insulation resistance | ≥5000MΩ / 100VDC | Safe overload | 120%F.S. |
| Material | Stainless steel | Limit overload | – |
| Protection class | IP66 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

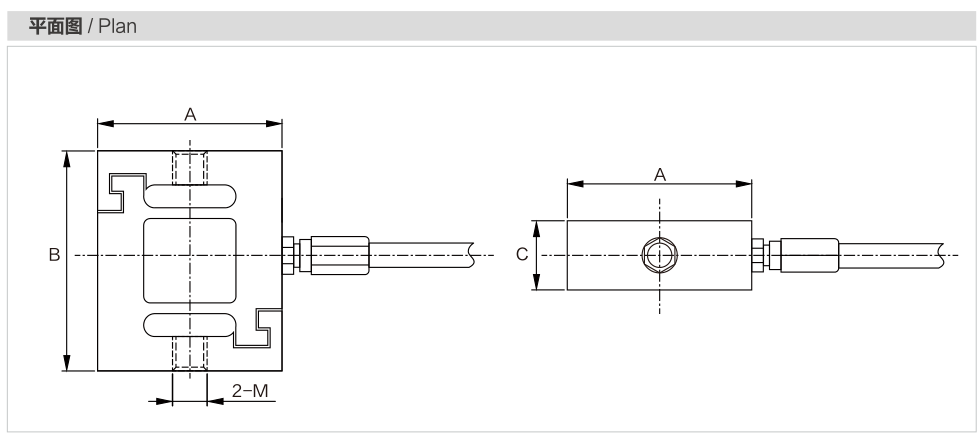

Dimension Drawing
Dimensions (mm)
| Model | Variant | Capacity (N) | Capacity (kg) | A | B | C | M |
|---|---|---|---|---|---|---|---|
| MK808 | A | 5/10/20/50/100/200 | 0.5/1/2/5/10/20 | 16 | 19.1 | 6 | M3 |
| B | 30/50/100/200/300/500 | 3/5/10/20/30/50 | M4 | ||||
| C | 250/300/500/1000/2000 | 25/30/50/100/200 | 26 | 40 | 14 | M8 |
