Overview

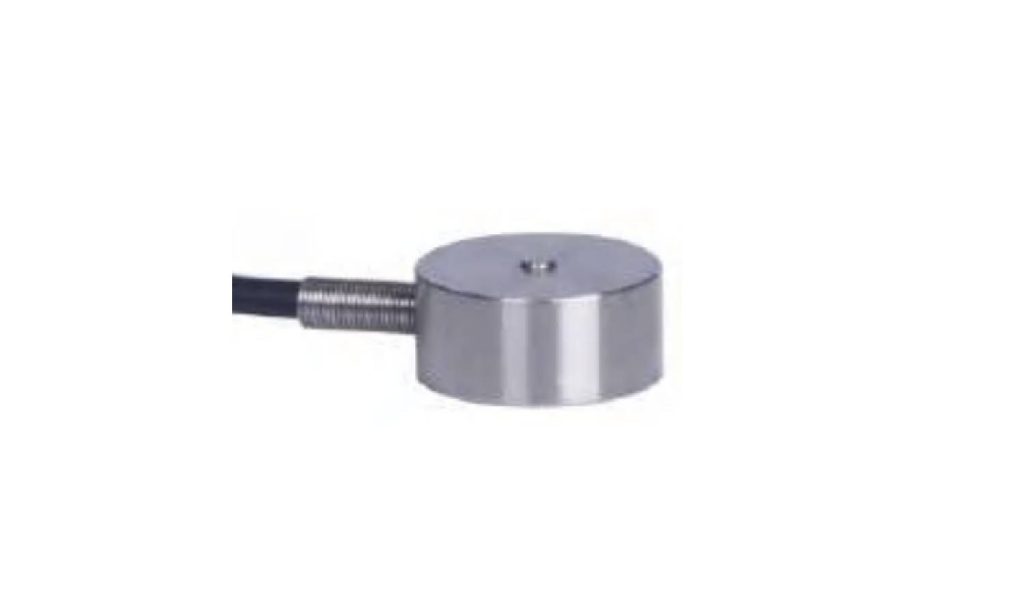

The MK807-C5 is a compact, lightweight miniature load cell offering high sensitivity with low power consumption. Reliable in operation and adaptable to many mounting situations, it is designed to be integrated easily into volume-produced devices that need dependable force or weight feedback in a confined space.
Key Features
- High sensitivity, low power
- Compact and lightweight
- Reliable, repeatable output
- Easy mass-production integration
- High accuracy (±0.05%F.S.) for precise measurement
- Al-alloy & Stainless steel elastic element for durability and corrosion resistance
Applications
Applied across industrial production, medical devices and smart-home products that require precision weighing or force sensing.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 500N 1000N 2000N 3000N 5000N | Output sensitivity | 2.0±2%mV/V |
| Temperature compensated range | – | Nonlinearity | ±0.05%F.S. |
| Operating temperature range | -10°C~40°C | Hysteresis | ±0.05%F.S. |
| Temperature Effect on Output | ±0.05%F.S./10°C | Repeatability | ±0.05%F.S. |
| Temperature Effect on Zero | ±0.05%F.S./10°C | Creep (30 min) | ±0.05%F.S./30min |
| Input impedance | 360±20Ω | Zero balance | ±0.1mV/V |
| Output impedance | 350±10Ω | Recommended excitation voltage | 6V DC |
| Insulation resistance | ≥2000MΩ / 50VDC | Safe overload | 120%F.S. |
| Material | Al-alloy & Stainless steel | Limit overload | – |
| Protection class | IP66 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

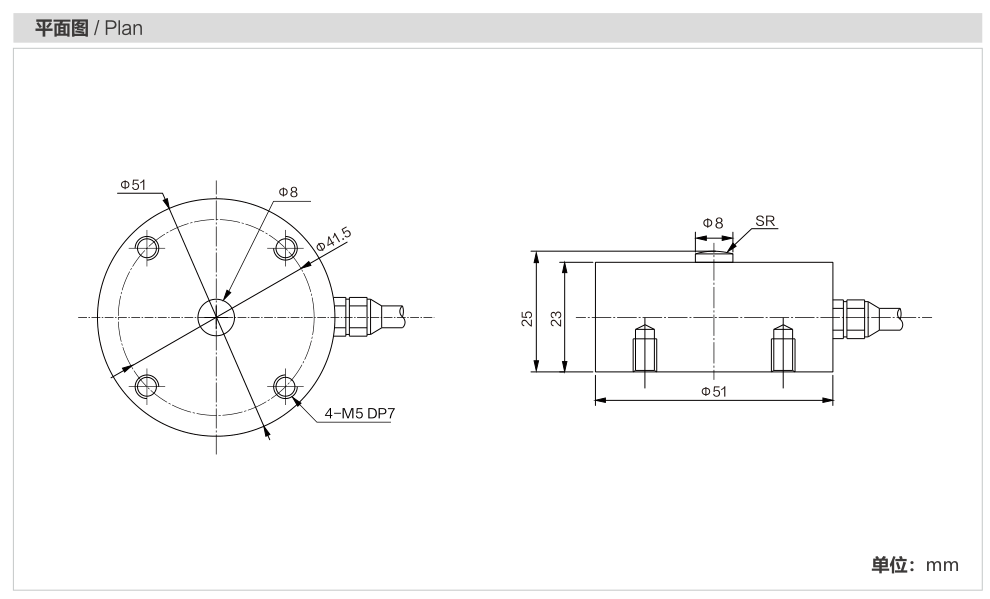

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK807-C5?
Applied across industrial production, medical devices and smart-home products that require precision weighing or force sensing.
Which indicator, transmitter or system works with the MK807-C5?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
