Overview

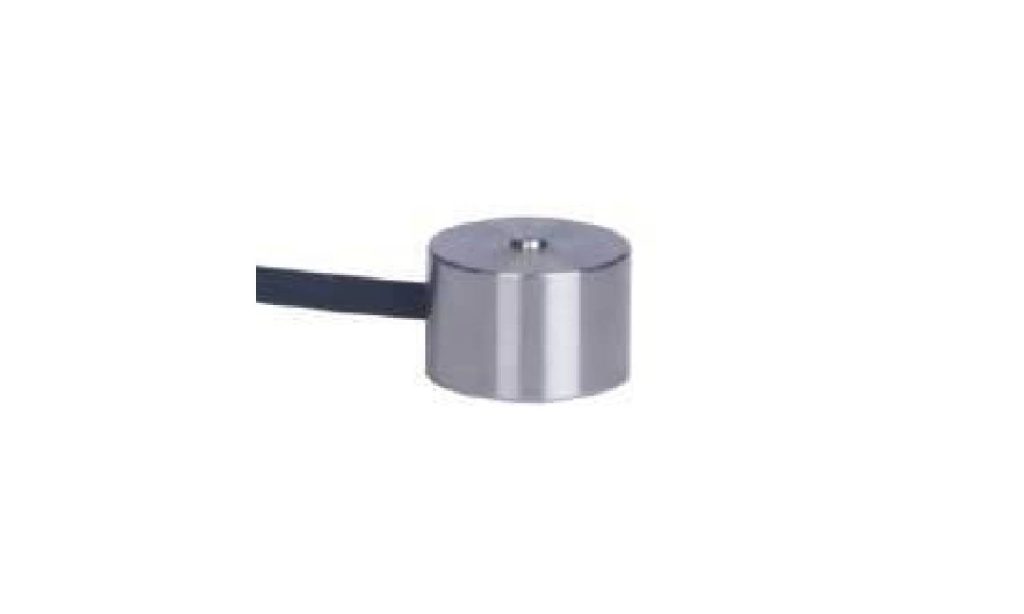

The MK807-C1 is a miniature load cell characterised by high sensitivity, small size, low weight and low power consumption. Reliable and easy to integrate, it tolerates varied operating conditions and supports batch assembly, bringing accurate force and weight measurement into tightly packaged products.
Key Features
- High accuracy (±1%F.S.) for precise measurement
- Al-alloy & Stainless steel elastic element for durability and corrosion resistance
- Sealed to IP66 for reliable operation in harsh environments
- Standard output 2.0±2%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Industrial production equipment, medical devices, robots and smart-home products where miniature force sensing must fit inside compact assemblies.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | MK807-C1 50N 100N MK807-C2 50N 100N 200N 500N | Output sensitivity | 2.0±2%mV/V |
| Temperature compensated range | – | Nonlinearity | ±1%F.S. |
| Operating temperature range | -10°C~40°C | Hysteresis | ±1%F.S. |
| Temperature Effect on Output | ±1%F.S./10°C | Repeatability | ±1%F.S. |
| Temperature Effect on Zero | ±1%F.S./10°C | Creep (30 min) | ±1%F.S./30min |
| Input impedance | 370±30Ω | Zero balance | ≤±0.1mV/V |
| Output impedance | 350±10Ω | Recommended excitation voltage | ≤6V DC |
| Insulation resistance | ≥2000MΩ / 50VDC | Safe overload | 120%F.S. |
| Material | Al-alloy & Stainless steel | Limit overload | – |
| Protection class | IP66 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

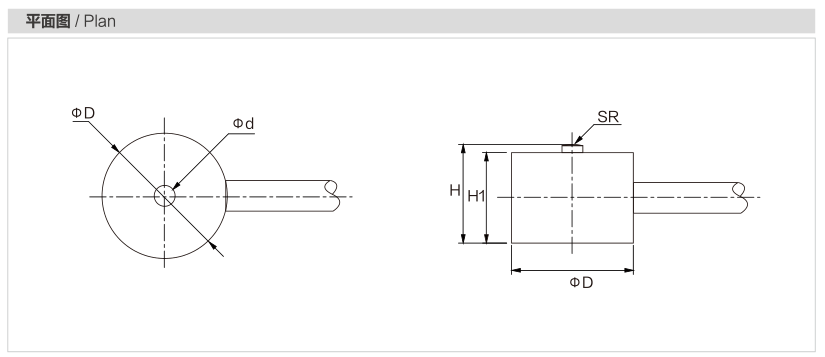

Dimension Drawing
Dimensions (mm)
| Model | Capacity (N) | Capacity (kg) | D | d | H | H1 | SR |
|---|---|---|---|---|---|---|---|
| MK807-C1 | 50/100 | 5/10 | 9 | 1.5 | 7 | 6.5 | 5 |
| MK807-C2 | 50/100/200/500 | 5/10/20/50 | 13 | 2 | 9 | 8.5 | 8 |
Frequently Asked Questions
What are the typical applications of the MK807-C1?
Industrial production equipment, medical devices, robots and smart-home products where miniature force sensing must fit inside compact assemblies.
Which indicator, transmitter or system works with the MK807-C1?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
