Overview

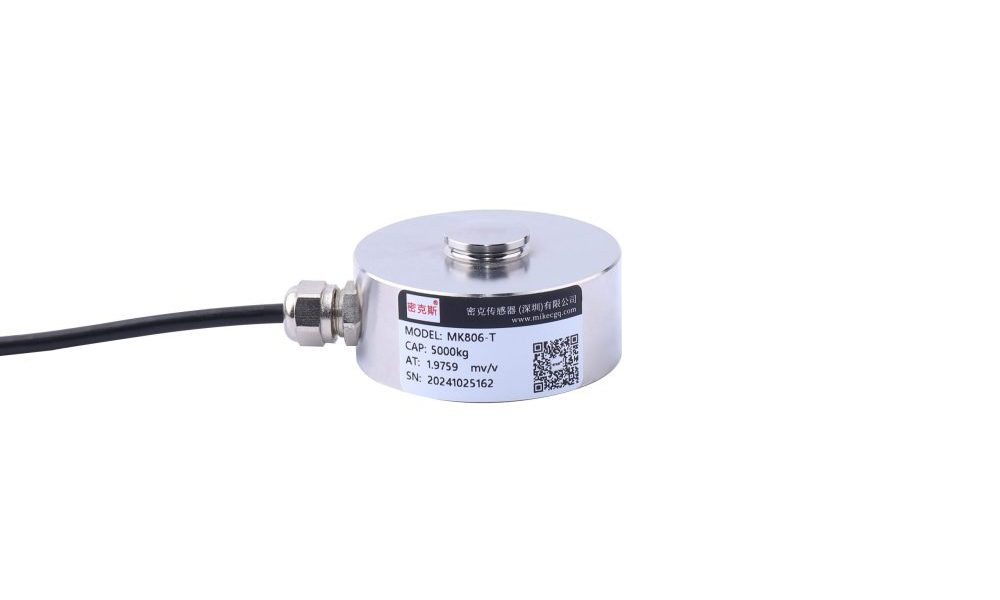

The MK806-T is a miniature load cell with a broad capacity range in a small, lightweight package. It provides stable, reliable output and simple integration, covering fine low-force work and heavier duty within a compact footprint.
Key Features
- High accuracy (±0.3%F.S) for precise measurement
- Stainless steel elastic element for durability and corrosion resistance
- Sealed to IP66 for reliable operation in harsh environments
- Standard output 1.0–2.0mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Applied in industrial automation, test equipment and medical devices that need accurate force or weight sensing in tight spaces.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 0.03kN ~ 100kN | Output sensitivity | 1.0–2.0mV/V |
| Temp.compensated range | -10°C~40°C | Nonlinearity | ±0.3%F.S |
| Operating temp. range | -20°C~60°C | Hysteresis | ±0.3%F.S |
| Temp. Effect on Output | ±0.3%F.S/10°C | Repeatability | ±0.3%F.S |
| Temp.Effect on Zero | ±0.3%F.S/10°C | Creep (30 min) | ±0.1%F.S/30min |
| Input impedance | 700 / 1000Ω | Zero balance | ≤±1.0%F.S |
| Output impedance | – | Excitation voltage | 5 10V DC |
| Insulation resistance | ≥5000MΩ / 100VDC | Safe overload | 120%F.S |
| Material | Stainless steel | Limit overload | – |
| Protection class | IP66 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

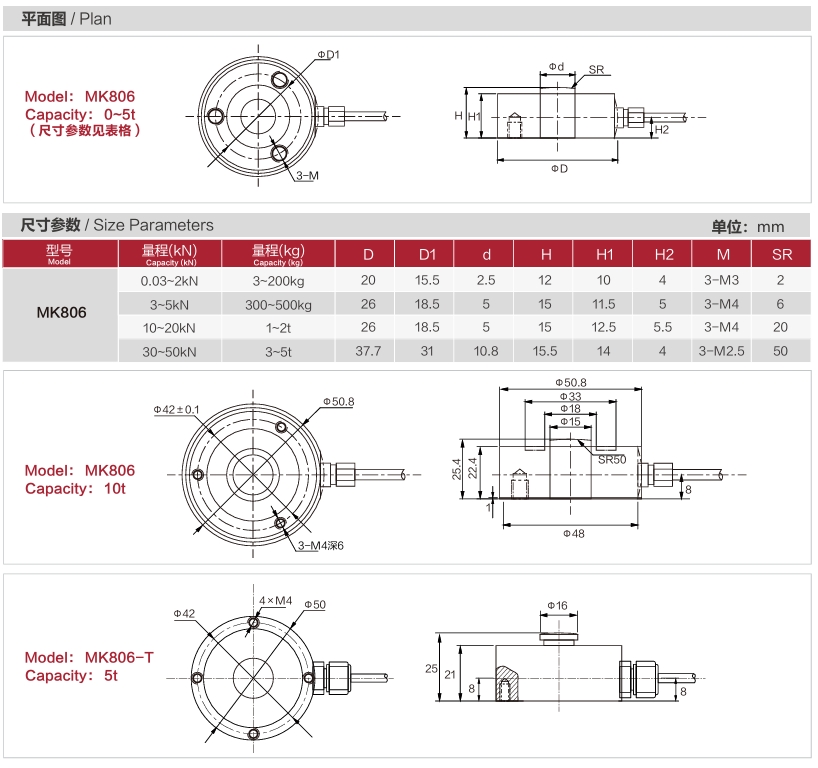

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK806-T?
Applied in industrial automation, test equipment and medical devices that need accurate force or weight sensing in tight spaces.
Which indicator, transmitter or system works with the MK806-T?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
