Overview

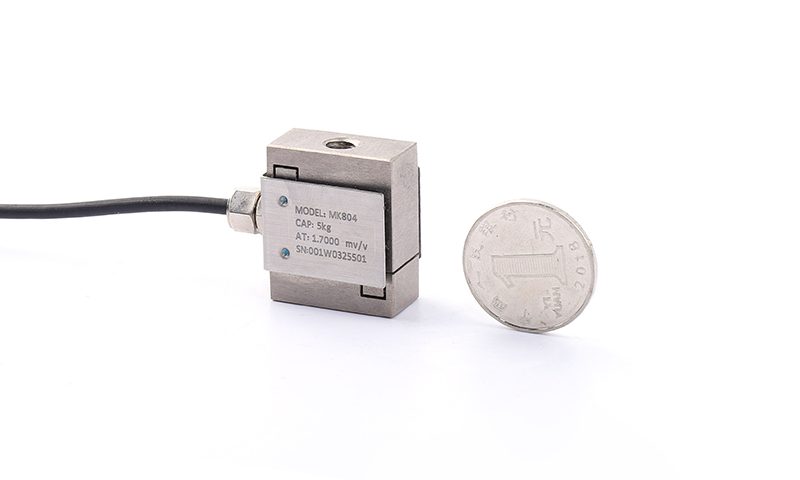

The MK804PL is a miniature S-beam load cell usable in both tension and compression, with high accuracy, good stability and well-symmetrical output. Its compact size fits tight measurement spaces.
Key Features
- High accuracy (±0.05%F.S) for precise measurement
- Stainless Steel elastic element for durability and corrosion resistance
- Sealed to IP65 for reliable operation in harsh environments
- Standard output 1.0–2.0mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Suited to belt scales, hopper scales, electromechanical scales, universal material testing machines, hook scales and engineering force-measurement systems.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 10N, 20N, 30N, 50N, 100N, 200N, 300N, 500N, 1kN | Output sensitivity | 1.0–2.0mV/V |
| Temperature compensated range | -10°C~40°C | Nonlinearity | ±0.05%F.S |
| Operating temperature range | -20°C~60°C | Hysteresis | ±0.05%F.S |
| Temperature Effect on Output | ±0.03%F.S/10°C | Repeatability | ±0.03%F.S |
| Temperature Effect on Zero | ±0.03%F.S/10°C | Creep (30 min) | ±0.03%F.S/30min |
| Input impedance | 350±20Ω | Zero balance | ≤±1.0%F.S |
| Output impedance | 350±5Ω | Recommended excitation voltage | 10~15V DC |
| Insulation resistance | ≥5000MΩ / 50VDC | Safe overload | 120%F.S |
| Material | Stainless Steel | Limit overload | – |
| Protection class | IP65 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

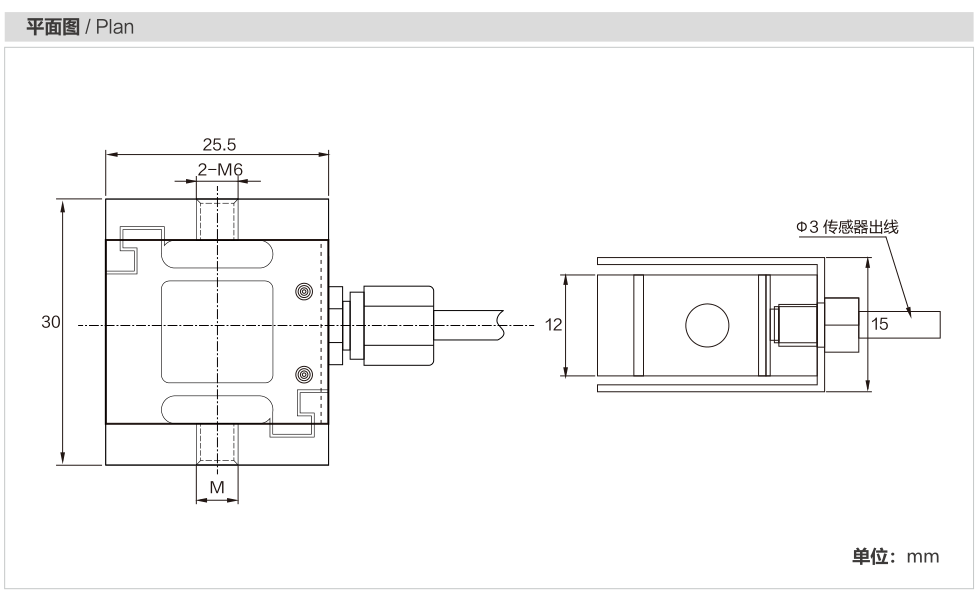

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK804PL?
Suited to belt scales, hopper scales, electromechanical scales, universal material testing machines, hook scales and engineering force-measurement systems.
Which indicator, transmitter or system works with the MK804PL?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
