Overview

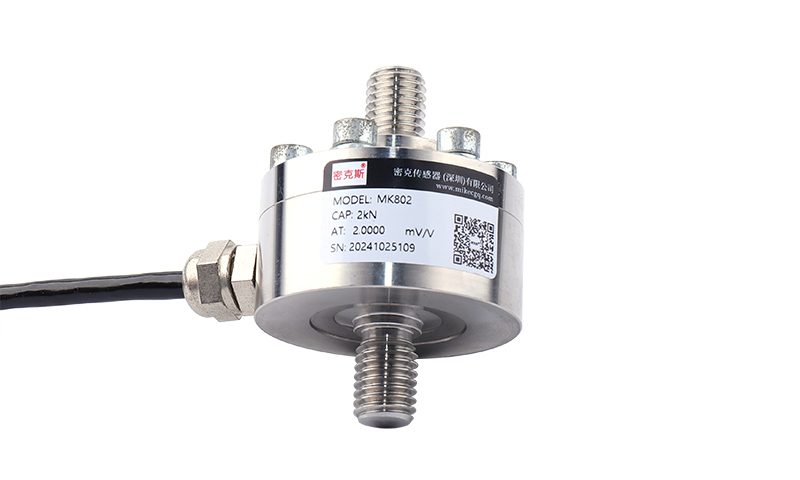

The MK802 is a miniature compression load cell with a deliberately small outline that keeps fitting and commissioning simple. It is meant for pressing-force measurement in positions where a full-sized cell has no room to sit, giving machine builders a clean option for tight force points.
Key Features
- High accuracy (≤0.15%F.S) for precise measurement
- Stainless Steel elastic element for durability and corrosion resistance
- Standard output 1.0±10%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Suited to confined-space compression force measurement in machinery, fixtures and compact weighing or press-fit assemblies.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 500N 1kN 2kN 3kN 5kN 10kN 20kN 30kN 50kN | Output sensitivity | 1.0±10%mV/V |
| Temperature compensated range | -10°C~40°C | Nonlinearity / Repeatability | ≤0.15%F.S |
| Operating temperature range | -20°C~60°C | Hysteresis | ≤0.15%F.S |
| Temperature Effect on Output | ±0.2%F.S/10°C | Creep (30 min) | ±0.15%F.S/30min |
| Temperature Effect on Zero | ±0.2%F.S/10°C | Zero balance | ≤±2.0%F.S |
| Input impedance | 390±15Ω | Recommended excitation voltage | 10V DC |
| Output impedance | 350±5Ω | Safe overload | 120%F.S |
| Insulation resistance | ≥5000MΩ | Limit overload | – |
| Material | Stainless Steel | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

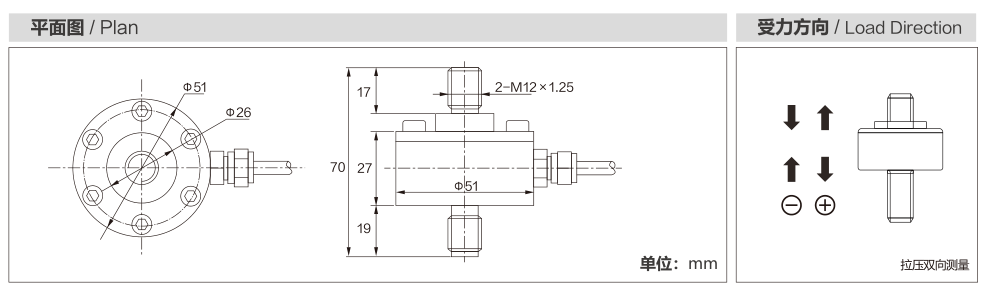

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK802?
Suited to confined-space compression force measurement in machinery, fixtures and compact weighing or press-fit assemblies.
Which indicator, transmitter or system works with the MK802?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
