Overview

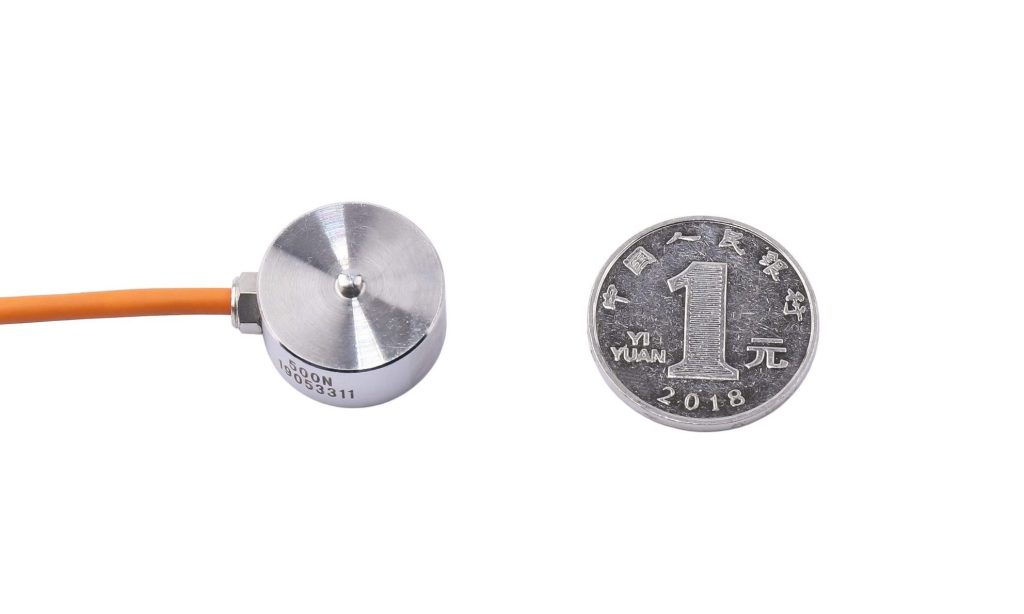

The MK801 is a miniature compression load cell with a compact profile that is simple to install. It is designed for force-measurement applications where mounting space is severely limited.
Key Features
- High accuracy (0.1~0.5%F.S) for precise measurement
- Stainless Steel elastic element for durability and corrosion resistance
- Sealed to IP64 for reliable operation in harsh environments
- Standard output 1.0–1.5mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Suited to compact compression-force measurement in space-restricted equipment, fixtures and assemblies.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 50N 100N 200N 300N 500N 1kN 2kN 5kN 10kN 20kN | Comprehensive accuracy | 0.1~0.5%F.S |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 1.0–1.5mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.5%F.S |
| Temperature Effect on Output | <0.5%F.S/10°C | Hysteresis | ±0.5%F.S |
| Temperature Effect on Zero | <0.5%F.S/10°C | Repeatability | ±0.5%F.S |
| Input impedance | 350±20Ω | Creep (30 min) | ±0.5%F.S/30min |
| Output impedance | 350±3Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10V DC |
| Material | Stainless Steel | Safe overload | 120%F.S |
| Protection class | IP64 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

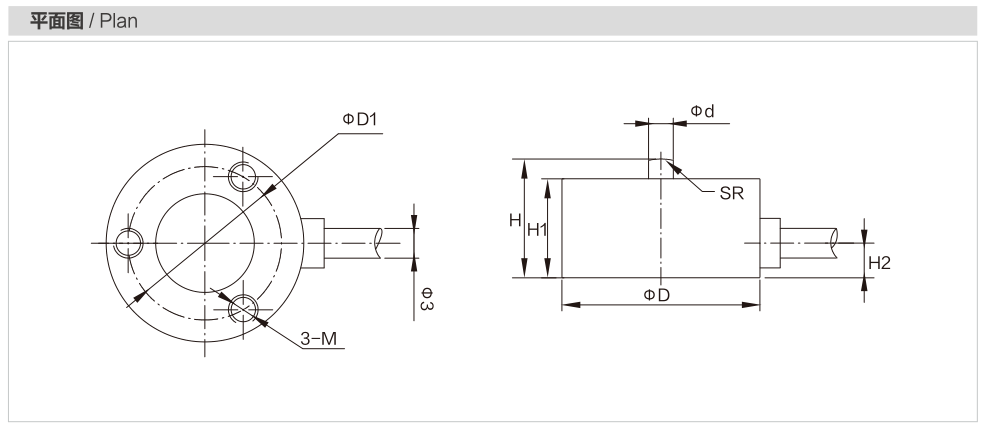

Dimension Drawing
Dimensions (mm)
| Model | Capacity (kN) | Capacity (kg) | ΦD | Φd | ΦD1 | H | H1 | H2 | M | SR |
|---|---|---|---|---|---|---|---|---|---|---|
| MK801 | 0.1~2 | 10~200 | 20 | 2.5 | 15.5 | 12 | 10 | 3.5 | M3 | 6 |
| 3~10 | 300~1000 | 26 | 5 | 18.5 | 15 | 11.5 | M4 | |||
| 20 | 2000 | 30 | 8 | 20 | 18 | 14 | 15 |
