Overview

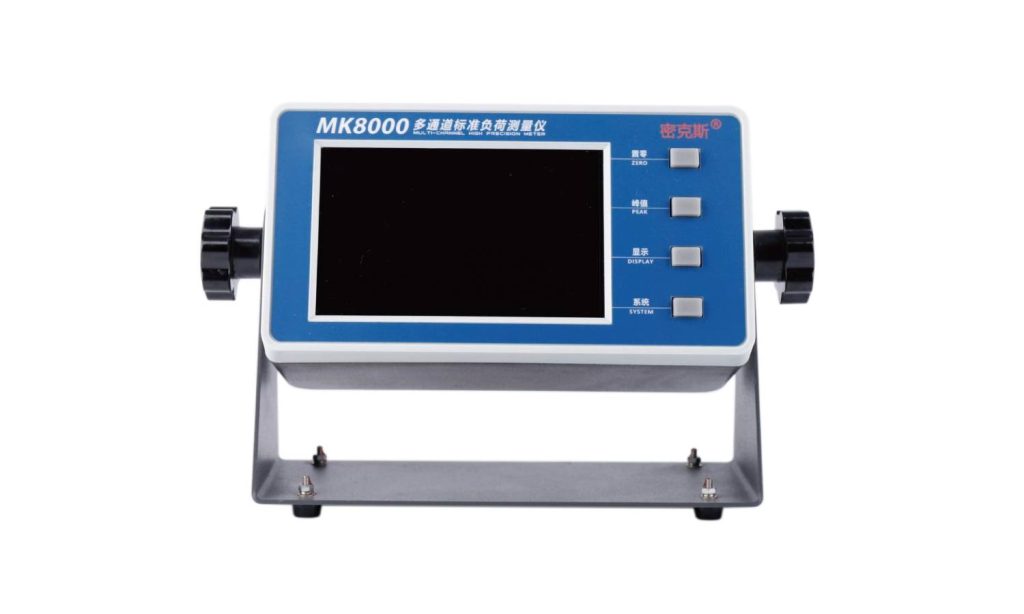

Where one instrument must watch several sensors at once, the MK8000 multi-channel standard load meter captures multiple force signals simultaneously without trading away accuracy, resolution or stability. It is built for verification and precision measurement work on mechanical test equipment.
Key Features
- High combined accuracy and excellent long-term stability
- Compact design for straightforward integration
Applications
Used in metrology laboratories and quality departments verifying force-indicating equipment, and for high-resolution multi-channel measurement on mechanical test rigs.
| Technical Parameters | |||
|---|---|---|---|
| Operating voltage | MK8000 multi-channel standard load meter | Comprehensive accuracy | <0.005%FS |
| Linearity | <0.005%FS | Repeatability | <0.005%FS |
| Display divisions | 100,000~500,000 | mV/V measurement range | 0.01μV/V |
| A/D Conversion Speed rate | 50~500 times/second | Input signal range | Various strain gauge sensors with output sensitivity of 1, 2, 3, 4mV/V |
| Linear correction | Support 8-segment linear correction | Printing interface | Serial print interface and standard RS232 interface |
Frequently Asked Questions
What are the typical applications of the MK8000?
Used in metrology laboratories and quality departments verifying force-indicating equipment, and for high-resolution multi-channel measurement on mechanical test rigs.
Which indicator, transmitter or system works with the MK8000?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
