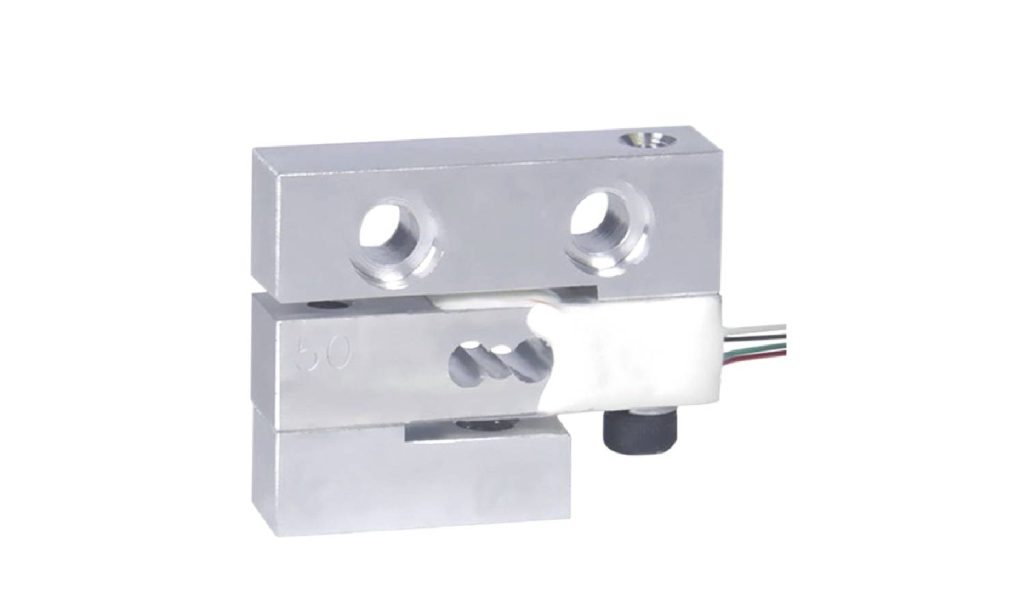

Overview
Built around a resilient parallel-beam element, the MK738 load cell delivers high accuracy with strong rejection of off-centre and side forces, and holds up to continuous industrial duty. Its compact form simplifies retrofit into existing scale platforms, while measurement repeatability supports automated control loops.
Key Features
- High accuracy (–) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to IP65 for reliable operation in harsh environments
- Standard output 1.0±10%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Common in batching and dosing scales, quantitative packaging and checkweighing equipment, hopper and belt scales, and sortation lines.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 2kg 5kg 10kg 20kg 30kg 50kg | Comprehensive accuracy | – |
| Temp. compensated range | -10°C~40°C | Rated output | 1.0±10%mV/V |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.05%F.S. |
| Temp. Effect on Output | ±0.05%F.S./10°C | Hysteresis | ±0.05%F.S. |
| Temp. Effect on Zero | ±2%F.S./10°C | Repeatability | ±0.05%F.S. |
| Input impedance | 1130±20Ω | Creep (2 min) | ±0.05%F.S./2min |
| Output impedance | 1000±10Ω | Zero balance | ±10%F.S. |
| Insulation resistance | ≥2000MΩ / 50VDC | Excitation voltage | 3-5V DC |
| Material | Aluminum alloy | Safe overload | 120%F.S. |
| Protection class | IP65 | Limit overload | – |
| Cable size | Φ0.8mm x 0.1m | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

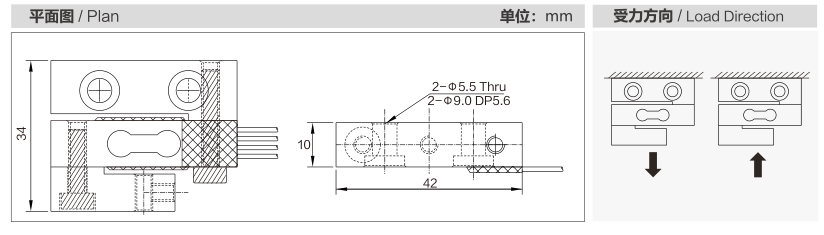

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK738?
Common in batching and dosing scales, quantitative packaging and checkweighing equipment, hopper and belt scales, and sortation lines.
Which indicator, transmitter or system works with the MK738?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
