Overview

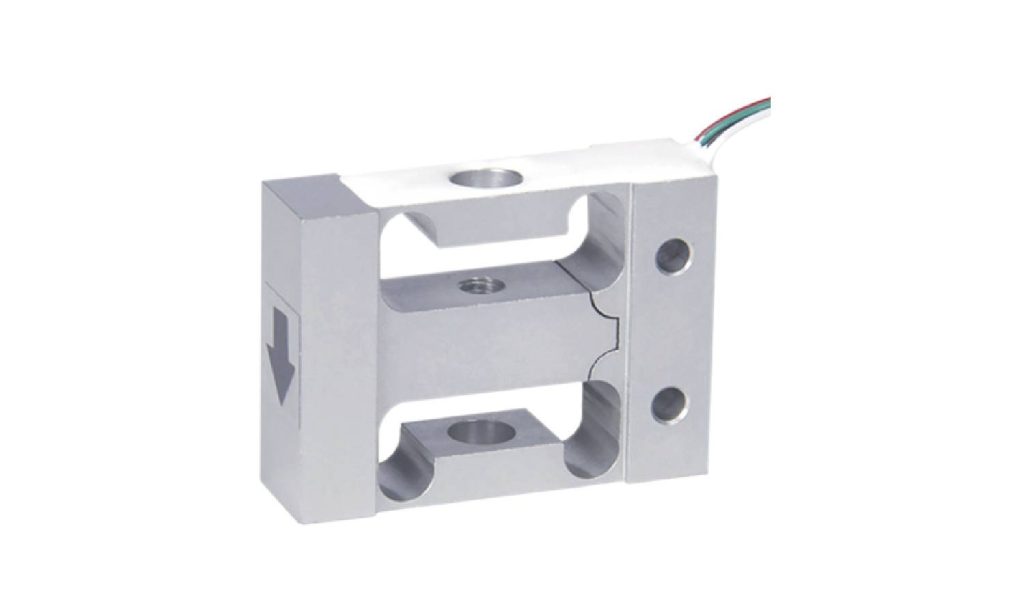

Built for precise, repeatable duty, the MK737 parallel-beam load cell pairs accuracy with robust resistance to eccentric loading in demanding plant conditions. Its durable, space-saving build supports continuous industrial weighing and automation.
Key Features
- High accuracy (–) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to IP65 for reliable operation in harsh environments
- Standard output 1.0±10%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Suited to batching and packaging scales, belt and hopper weighers, and automated sortation equipment.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 1kg 5kg 10kg 20kg 50kg | Comprehensive accuracy | – |
| Temp. compensated range | -10°C~40°C | Rated output | 1.0±10%mV/V |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.03%F.S. |
| Temp. Effect on Output | ±0.03%F.S./10°C | Hysteresis | ±0.02%F.S. |
| Temp. Effect on Zero | ±0.05%F.S./10°C | Repeatability | ±0.02%F.S. |
| Input impedance | 395±10Ω | Creep (30 min) | ±0.03%F.S./30min |
| Output impedance | 350±3Ω | Zero balance | ±2%F.S. |
| Insulation resistance | ≥2000MΩ / 50VDC | Excitation voltage | 5-12V DC |
| Material | Aluminum alloy | Safe overload | 120%F.S. |
| Protection class | IP65 | Limit overload | – |
| Cable size | Φ0.8mm x 0.5m | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

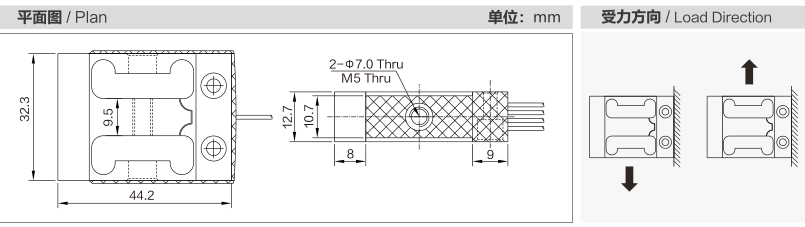

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK737?
Suited to batching and packaging scales, belt and hopper weighers, and automated sortation equipment.
Which indicator, transmitter or system works with the MK737?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
