Overview

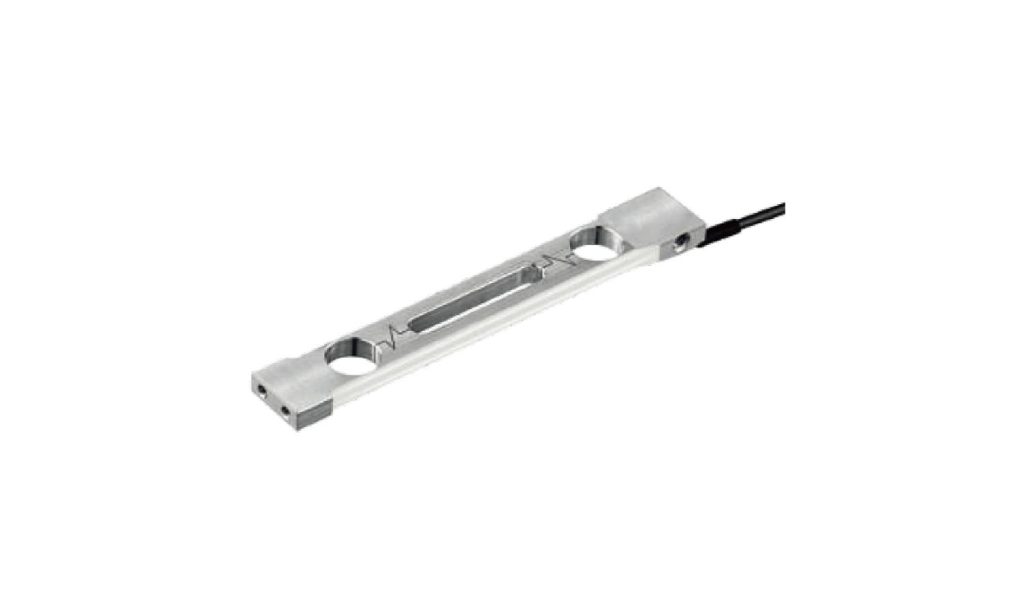

The MK736 is a parallel-beam load cell that combines high accuracy with robust resistance to off-centre loads and industrial-grade durability. Its compact, stable design makes it a dependable sensing element for precise weighing and automated process control, holding measurement steady through continuous production duty.
Key Features
- Parallel-beam design rejects off-centre loads
- Compact, stable, industrial-grade build
- Reliable for continuous automated weighing
- High accuracy (±0.01%F.S.) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to IP64 for reliable operation in harsh environments
Applications
Suited to industrial batching scales, quantitative packaging and checkweighing, belt and hopper scales, and automated sortation systems.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 50g 100g 200g | Rated output | 0.7±0.1mV/V |
| Temp. compensated range | -10°C~40°C | Nonlinearity | ±0.01%F.S. |
| Operating temp. range | -20°C~80°C | Hysteresis | ±0.01%F.S. |
| Temp. Effect on Output | ±0.02%F.S./10°C | Repeatability | ±0.01%F.S. |
| Temp. Effect on Zero | ±0.02%F.S./10°C | Creep (30 min) | ±0.05%F.S./30min |
| Input impedance | 1050±20Ω | Zero balance | ±0.04mV/V |
| Output impedance | 1000±10Ω | Excitation voltage | 5V DC |
| Insulation resistance | ≥5000MΩ / 100VDC | Safe overload | 500%F.S. |
| Material | Aluminum alloy | Limit overload | – |
| Protection class | IP64 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

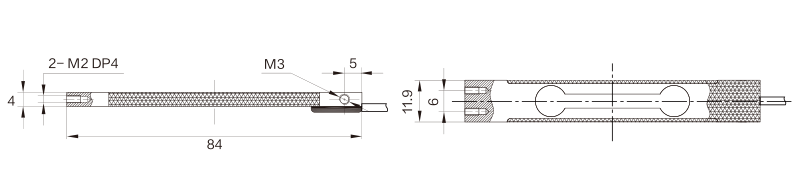

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK736?
Suited to industrial batching scales, quantitative packaging and checkweighing, belt and hopper scales, and automated sortation systems.
Which indicator, transmitter or system works with the MK736?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
