Overview

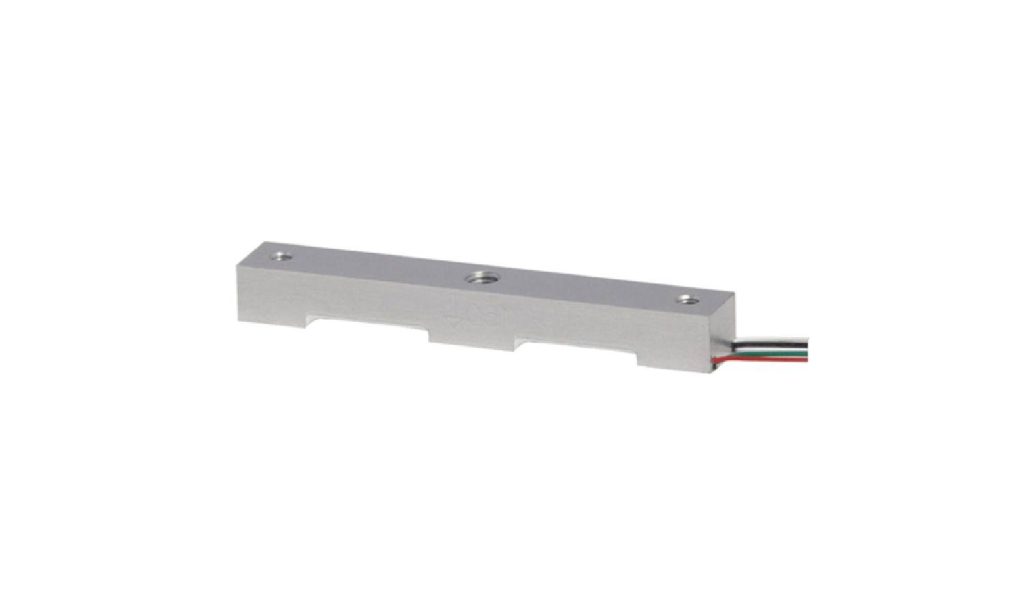

Built for precise, durable weighing, the MK735 parallel-beam load cell combines high accuracy with strong resistance to off-centre loads and an industrial-grade constitution. Its compact build and stable, repeatable output make it a core sensing element for automated weighing and control equipment.
Key Features
- Rejects off-centre loads
- Compact, space-saving build
- Stable, repeatable output
- High accuracy (±0.1%F.S.) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to – for reliable operation in harsh environments
Applications
Found on industrial batching scales, quantitative packaging scales, belt-conveyor scales, hopper scales and automatic sortation systems.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 60kg 120kg | Rated output | 2.0±10%mV/V |
| Temp. compensated range | – | Nonlinearity | ±0.1%F.S. |
| Operating temp. range | -10°C~40°C | Hysteresis | ±0.1%F.S. |
| Temp. Effect on Output | ±0.05%F.S./10°C | Repeatability | ±0.1%F.S. |
| Temp. Effect on Zero | ±2%F.S./10°C | Creep (2 min) | ±0.1%F.S./2min |
| Input impedance | 1130±20Ω | Zero balance | ±0.1mV/V |
| Output impedance | 1000±10Ω | Excitation voltage | ≤6V DC |
| Insulation resistance | ≥2000MΩ 50VDC | Safe overload | 120%F.S. |
| Material | Aluminum alloy | Limit overload | – |
| Protection class | – | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

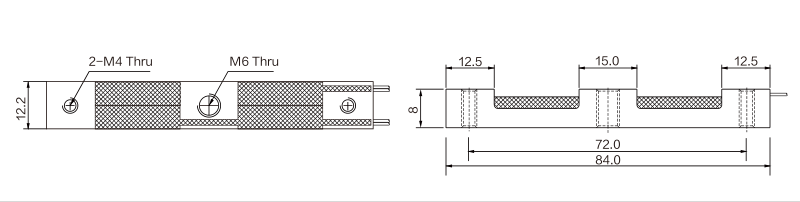

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK735?
Found on industrial batching scales, quantitative packaging scales, belt-conveyor scales, hopper scales and automatic sortation systems.
Which indicator, transmitter or system works with the MK735?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
