Overview

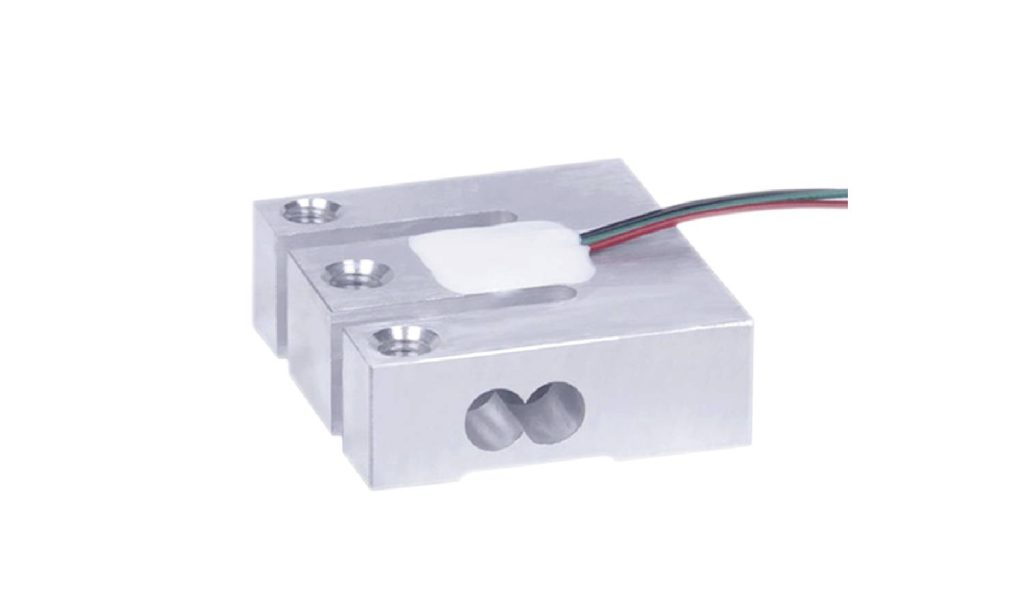

The MK734 is a parallel-beam load cell combining high accuracy with strong resistance to off-centre loads and industrial-grade durability. Its compact, stable design makes it a reliable sensing core for automated weighing and control.
Key Features
- High accuracy (–) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to – for reliable operation in harsh environments
- Standard output 1.0±10%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Common in industrial batching scales, quantitative packaging scales, belt-conveyor scales, hopper scales and automated sortation systems.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 50kg 75kg 100kg 150kg | Comprehensive accuracy | – |
| Temp. compensated range | – | Rated output | 1.0±10%mV/V |
| Operating temp. range | -10°C~40°C | Nonlinearity | ±0.05%F.S. |
| Temp. Effect on Output | <0.02%F.S/10°C | Hysteresis | ±0.05%F.S. |
| Temp. Effect on Zero | ±2%F.S./10°C | Repeatability | ±0.05%F.S. |
| Input impedance | 1130±100Ω | Creep (2 min) | ±0.05%F.S./2min |
| Output impedance | 1000±100Ω | Zero balance | ≤±0.1mV/V |
| Insulation resistance | ≥2000MΩ / 50VDC | Excitation voltage | ≤10V DC |
| Material | Aluminum alloy | Safe overload | 120%F.S. |
| Protection class | – | Limit overload | – |
| Cable size | Φ0.8mm x 0.6m | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

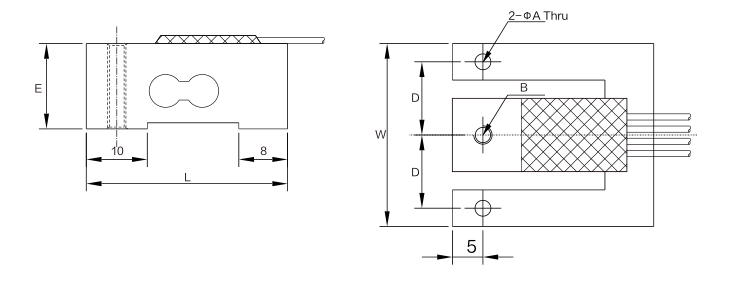

Dimension Drawing
Dimensions
| Model | Capacity (kN) | Capacity (kg) | A | B | D | W | L | E |
|---|---|---|---|---|---|---|---|---|
| MK734 | 0.5 | 50 | Φ3.2 | M3 | 12 | 30 | 33 | 9 |
| 0.75 | 75 | Φ6.2 | M6 | 17 | 44 | 40 | 14 | |
| 1 | 100 | M6 | ||||||
| 1.5 | 150 | Φ6.2 |
Frequently Asked Questions
What are the typical applications of the MK734?
Common in industrial batching scales, quantitative packaging scales, belt-conveyor scales, hopper scales and automated sortation systems.
Which indicator, transmitter or system works with the MK734?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
