Overview

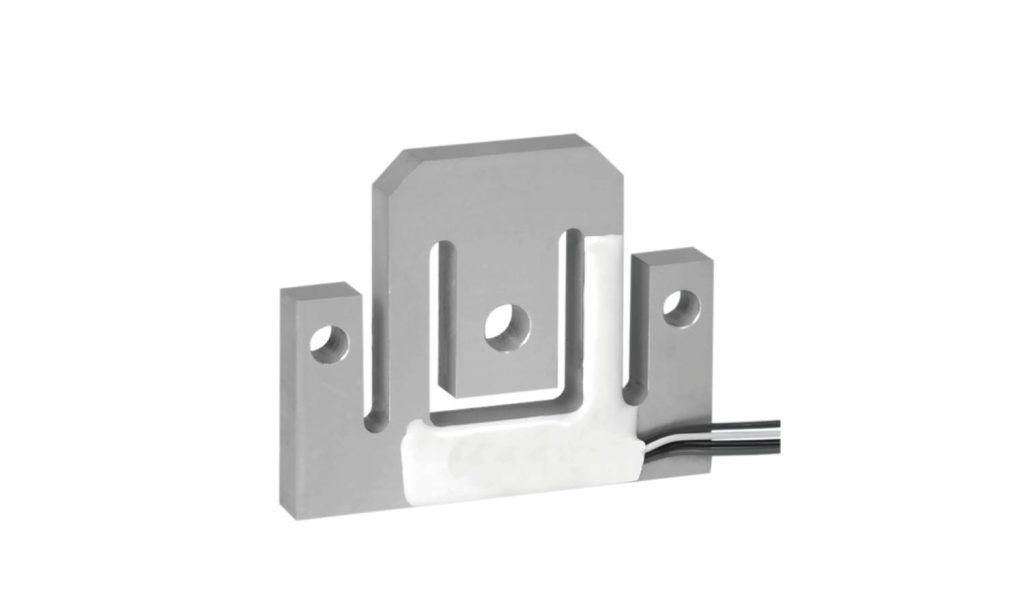

The MK733 is a parallel-beam load cell that pairs high accuracy with strong rejection of off-centre loading and industrial-grade toughness. Its compact beam holds measurement stable over long duty, making it a dependable sensing core for precise weighing and automated control on busy production lines.
Key Features
- High accuracy (–) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to – for reliable operation in harsh environments
- Standard output 0.85±10%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Industrial batching scales, quantitative packaging scales, electronic belt scales, hopper scales and automated sortation systems.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 75kg 150kg 300kg | Comprehensive accuracy | – |
| Temp. compensated range | -10°C~40°C | Rated output | 0.85±10%mV/V |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.03%F.S. |
| Temp. Effect on Output | ±0.03%F.S./10°C | Hysteresis | ±0.03%F.S. |
| Temp. Effect on Zero | ±0.05%F.S./10°C | Repeatability | ±0.03%F.S. |
| Input impedance | 1130±20Ω | Creep (2 min) | ±0.05%F.S./2min |
| Output impedance | 1000±10Ω | Zero balance | ≤±0.1mV/V |
| Insulation resistance | ≥2000MΩ / 50VDC | Excitation voltage | ≤10V DC |
| Material | Aluminum alloy | Safe overload | 120%F.S. |
| Protection class | – | Limit overload | – |
| Cable size | – | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

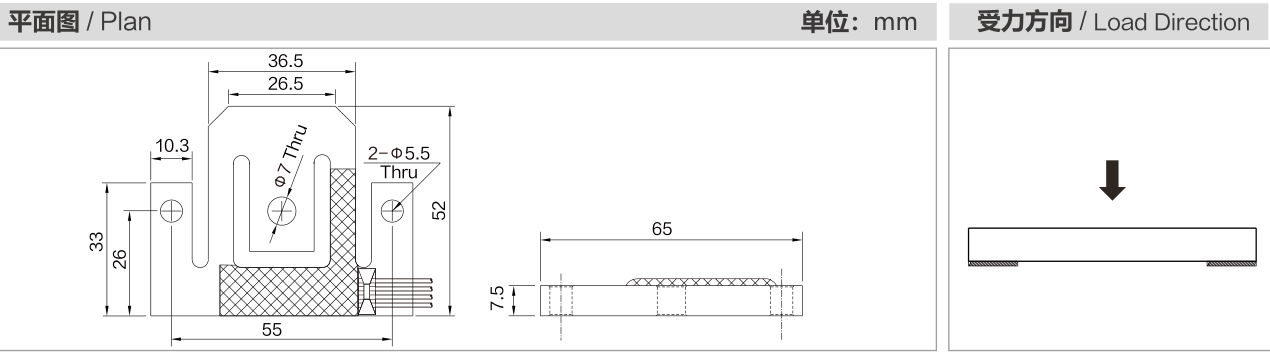

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK733?
Industrial batching scales, quantitative packaging scales, electronic belt scales, hopper scales and automated sortation systems.
Which indicator, transmitter or system works with the MK733?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
