Overview

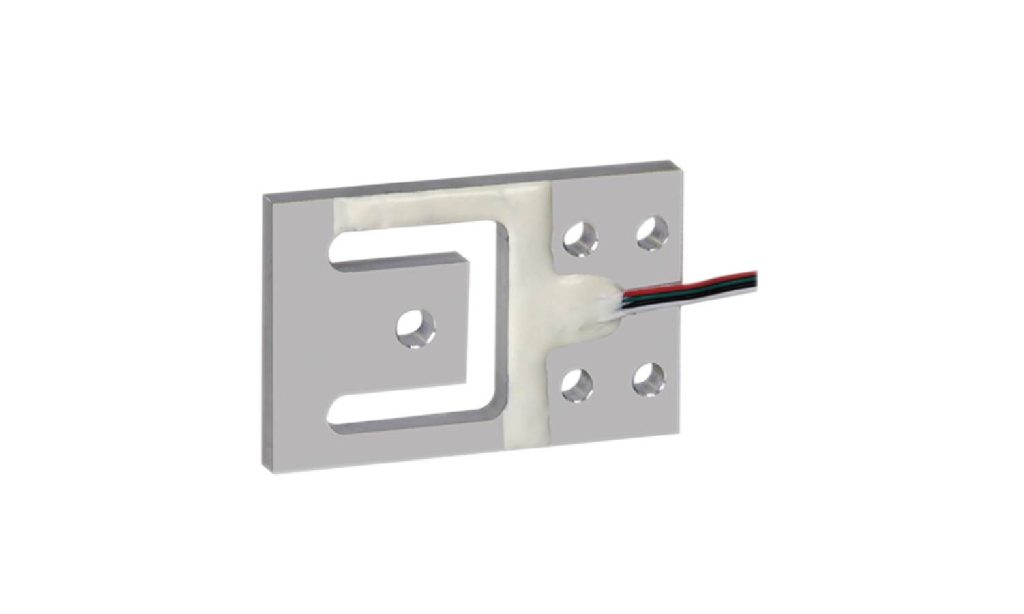

Engineered for precise, repeatable weighing on fast production lines, the MK732 parallel-beam load cell pairs high accuracy with rugged industrial durability. Its resilient parallel-beam design rejects side and off-centre forces, and its compact size simplifies retrofit into existing scale platforms.
Key Features
- High accuracy (–) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to – for reliable operation in harsh environments
- Standard output (1.0-2.0)±10%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Suited to batching and dosing scales, quantitative packaging and checkweigher systems, belt and hopper scales, and automated sortation equipment.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | MK732 30kg 75kg 150kg 300kgMK732-T 75kg 150kg 300kg | Comprehensive accuracy | – |
| Temp. compensated range | – | Rated output | (1.0-2.0)±10%mV/V |
| Operating temp. range | -10°C~40°C | Nonlinearity | ±0.05%F.S. |
| Temp. Effect on Output | ±0.05%F.S./10°C | Hysteresis | ±0.05%F.S. |
| Temp. Effect on Zero | ±2%F.S./10°C | Repeatability | ±0.05%F.S. |
| Input impedance | 1130±20Ω | Creep (2 min) | ±0.05%F.S./2min |
| Output impedance | 1000±10Ω | Zero balance | ≤±0.1mV/V |
| Insulation resistance | ≥2000MΩ / 50VDC | Excitation voltage | ≤10V DC |
| Material | Aluminum alloy | Safe overload | 120%F.S. |
| Protection class | – | Limit overload | – |
| Cable size | – | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

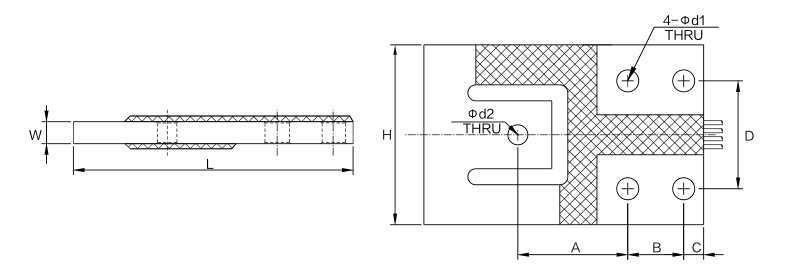

Dimension Drawing
Dimensions
| Model | Capacity (kN) | Capacity (kg) | Output (mV/V) | A | B | C | D | Φd1 | Φd2 | H | L | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MK732 | 0.3 | 30 | 1.5 | 27.5 | 14 | 5 | 27 | Φ5.1 | Φ5 | 39 | 70 | 3.500 |
| 0.75 | 75 | Φ6.1 | 45 | 4.522 | ||||||||
| 1.5 | 150 | 2.0 | 5.500 | |||||||||
| 3 | 300 | 7.755 | ||||||||||
| MK732-T | 0.75, 1.5, 3 | 75, 150, 300 | 1.0 | 34 | 15 | 6.5 | 30 | Φ6.5 | Φ7 | 55 | 84.5 | 7.500 |
Frequently Asked Questions
What are the typical applications of the MK732?
Suited to batching and dosing scales, quantitative packaging and checkweigher systems, belt and hopper scales, and automated sortation equipment.
Which indicator, transmitter or system works with the MK732?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
