Overview

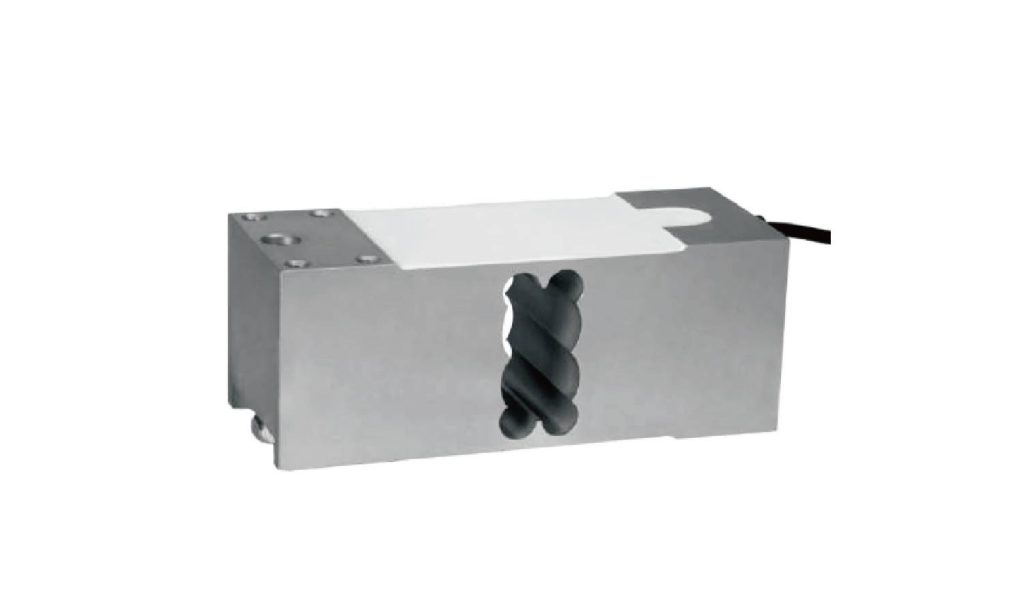

The MK731 is a parallel-beam load cell engineered for stable, high-accuracy weighing where side and off-centre forces are a concern. Rugged and compact, it holds its readings across long production runs and integrates easily into scale platforms.
Key Features
- High accuracy (–) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to IP66 for reliable operation in harsh environments
- Standard output 2.0±0.5%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Used in industrial batching and quantitative packaging scales, belt and hopper weighing, and automated sortation systems.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 100kg 200kg 300kg 500kg 600kg 800kg 1000kg 1500kg | Comprehensive accuracy | – |
| Temp. compensated range | -10°C~40°C | Output sensitivity | 2.0±0.5%mV/V |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.015%F.S. |
| Temp. Effect on Output | <0.02%F.S./10°C | Hysteresis | ±0.01%F.S. |
| Temp. Effect on Zero | <0.02%F.S./10°C | Repeatability | ±0.01%F.S. |
| Input impedance | 405±10Ω | Creep (30 min) | ±0.02%F.S./30min |
| Output impedance | 350±3Ω | Zero balance | ≤±5%F.S. |
| Insulation resistance | ≥5000MΩ 50VDC | Excitation voltage | 5-12V DC |
| Material | Aluminum alloy | Safe overload | 120%F.S. |
| Protection class | IP66 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

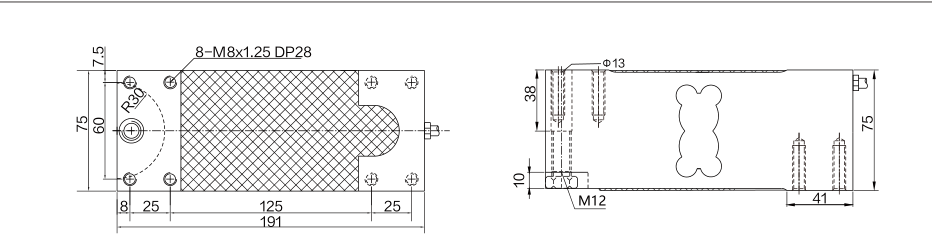

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK731?
Used in industrial batching and quantitative packaging scales, belt and hopper weighing, and automated sortation systems.
Which indicator, transmitter or system works with the MK731?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
