Overview

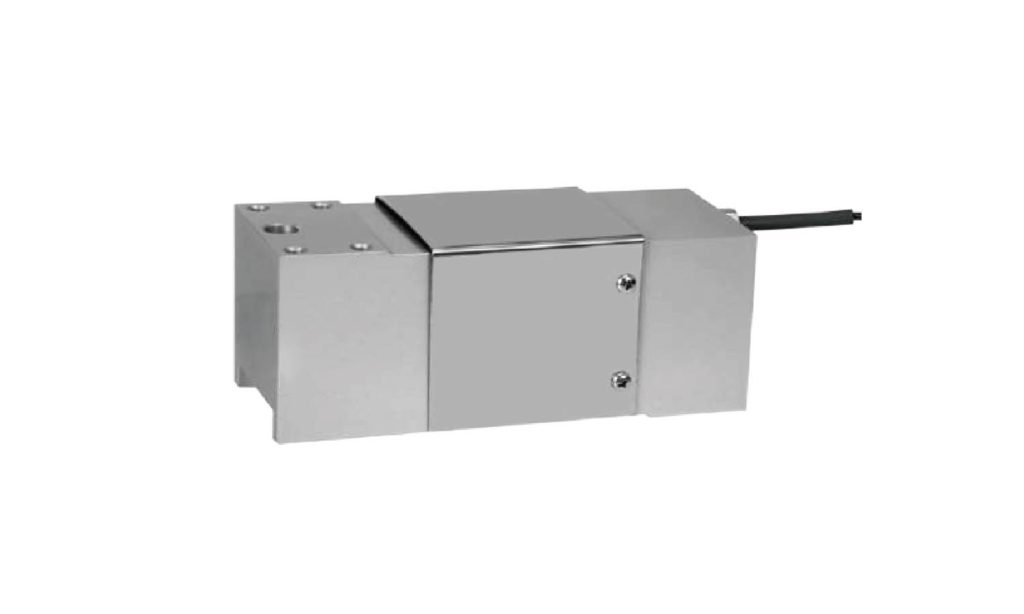

The MK731-T1 is an industrial parallel-beam load cell designed around three priorities: accuracy under real plant conditions, resistance to eccentric loads, and mechanical durability. Stable, repeatable output supports closed-loop weighing and dosing, and its compact size eases integration into scale frames and packaging machinery.
Key Features
- High accuracy (±0.015%F.S.) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to IP66 for reliable operation in harsh environments
- Standard output 2.0±0.5%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Suited to weighing hoppers, batching and quantitative packaging scales, belt scales and automated sorting equipment in production plants.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 100kg 200kg 300kg 500kg 600kg 800kg 1000kg 1500kg | Rated output | 2.0±0.5%mV/V |
| Temp. compensated range | -10°C~40°C | Nonlinearity | ±0.015%F.S. |
| Operating temp. range | -20°C~60°C | Hysteresis | ±0.01%F.S. |
| Temp. Effect on Output | ±0.02%F.S./10°C | Repeatability | ±0.01%F.S. |
| Temp. Effect on Zero | ±0.02%F.S./10°C | Creep (30 min) | ±0.02%F.S./30min |
| Input impedance | 405±10Ω | Zero balance | ≤±5%F.S. |
| Output impedance | 350±3Ω | Excitation voltage | 5-12V DC |
| Insulation resistance | ≥5000MΩ / 50VDC | Safe overload | 120%F.S. |
| Material | Aluminum alloy | Limit overload | – |
| Protection class | IP66 | Cable connection | Red: Exc+(excitation+), Black: Exc-(excitation-); Green: Sig+(signal+), White: Sig-(signal-); Blue: Exn+(feedback+), Yellow: Exn-(feedback-); Shield (ground) |

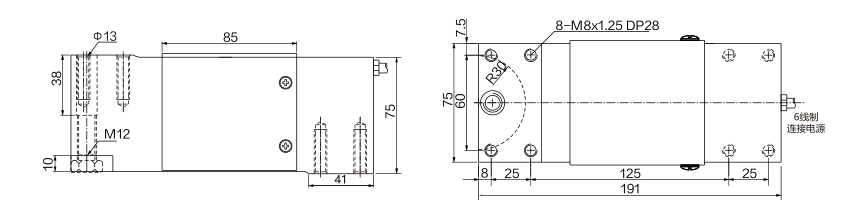

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK731-T1?
Suited to weighing hoppers, batching and quantitative packaging scales, belt scales and automated sorting equipment in production plants.
Which indicator, transmitter or system works with the MK731-T1?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
