Overview

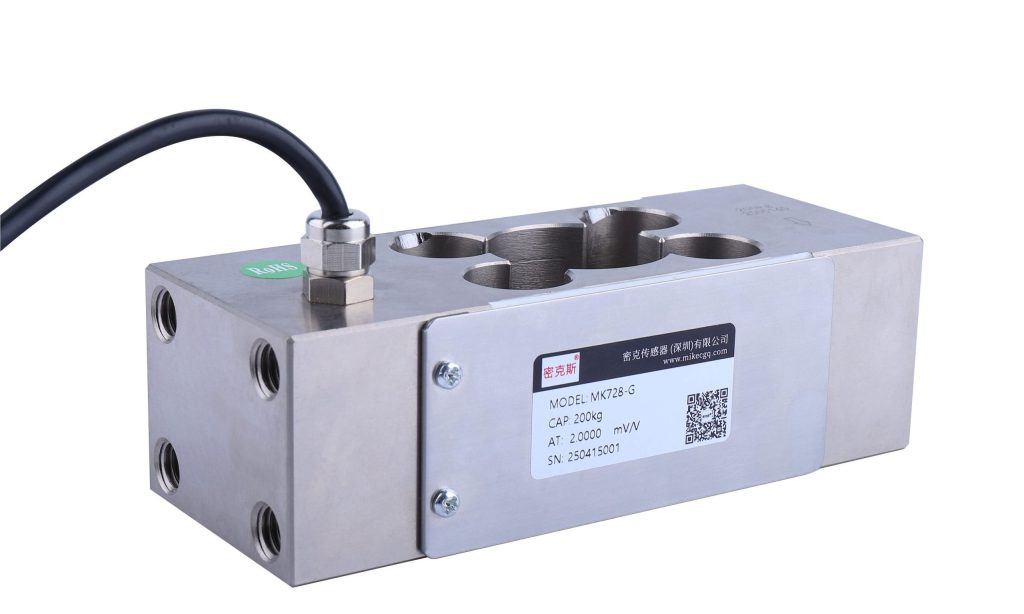

Engineered for precise, repeatable results, the MK728-G parallel-beam load cell pairs accuracy with rugged industrial durability and firm resistance to eccentric loading. Its compact build and stable output support automated weighing and control lines.
Key Features
- High accuracy (≤0.02-0.05%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Standard output 2.0mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Suited to batching and dosing scales, quantitative packaging and checkweighing, belt and hopper scales, and sortation equipment.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 100kg 200kg 300kg 500kg 750kg 1000kg | Comprehensive accuracy | ≤0.02-0.05%F.S |
| Temp. compensated range | -10°C~40°C | Output sensitivity | 2.0mV/V |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temp. Effect on Output | <0.03%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temp. Effect on Zero | <0.03%F.S/10°C | Repeatability | ±0.02%F.S |
| Input impedance | 380±15Ω | Creep (30 min) | ±0.02%F.S/30min |
| Output impedance | 350±3Ω | Zero balance | ≤±1%F.S |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 10V DC |
| Material | Alloy steel | Safe overload | 120%F.S |
| Recommended surface size | 600x600mm | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

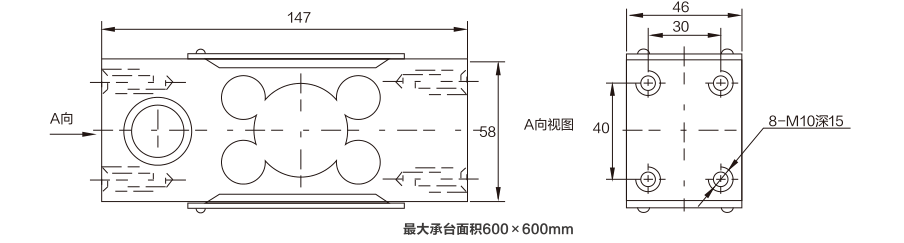

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK728-G?
Suited to batching and dosing scales, quantitative packaging and checkweighing, belt and hopper scales, and sortation equipment.
Which indicator, transmitter or system works with the MK728-G?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
