Overview

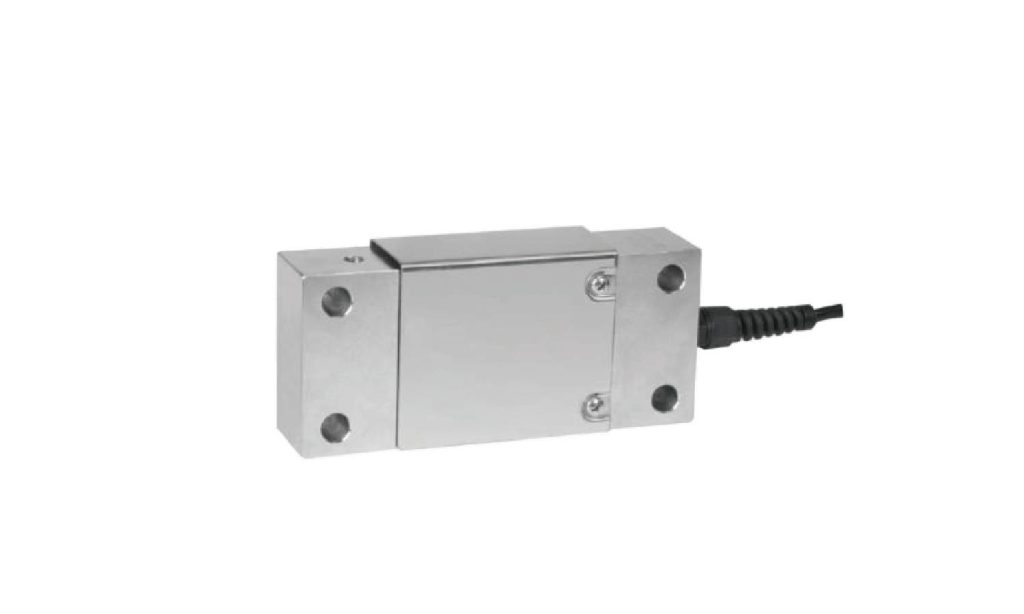

Built for accurate weighing in continuous production, the MK727 parallel-beam load cell combines high precision with rugged durability and resistance to off-centre loads. Its compact design maintains stable measurements through long service, supporting precise weight control and automated line management.
Key Features
- High accuracy (–) for precise measurement
- Stainless steel elastic element for durability and corrosion resistance
- Sealed to IP66 for reliable operation in harsh environments
- Standard output 2.0±0.25%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Batching and dosing scales, quantitative packaging scales, belt and hopper weighing, and automatic sortation equipment.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 50lb 100lb 200lb 250lb 500lb | Comprehensive accuracy | – |
| Temp. compensated range | -10°C~40°C | Rated output | 2.0±0.25%mV/V |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.02%F.S. |
| Temp. Effect on Output | ±0.03%F.S./10°C | Hysteresis | ±0.015%F.S. |
| Temp. Effect on Zero | ±0.03%F.S./10°C | Repeatability | ±0.015%F.S. |
| Input impedance | 385±10Ω | Creep (30 min) | ±0.03%F.S./30min |
| Output impedance | 350±3Ω | Zero balance | ≤±2%F.S. |
| Insulation resistance | ≥2000MΩ / 50VDC | Excitation voltage | 5-12V DC |
| Material | Stainless steel | Safe overload | 120%F.S. |
| Protection class | IP66 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

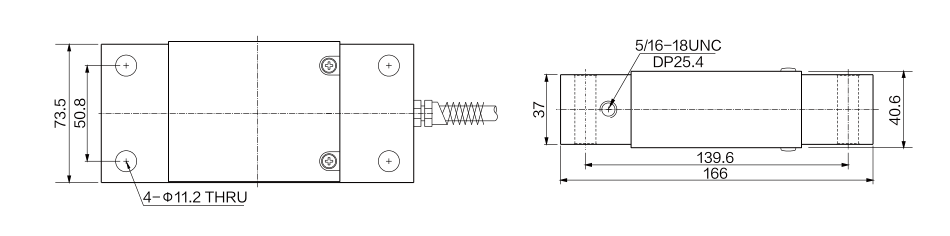

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK727?
Batching and dosing scales, quantitative packaging scales, belt and hopper weighing, and automatic sortation equipment.
Which indicator, transmitter or system works with the MK727?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
