Overview

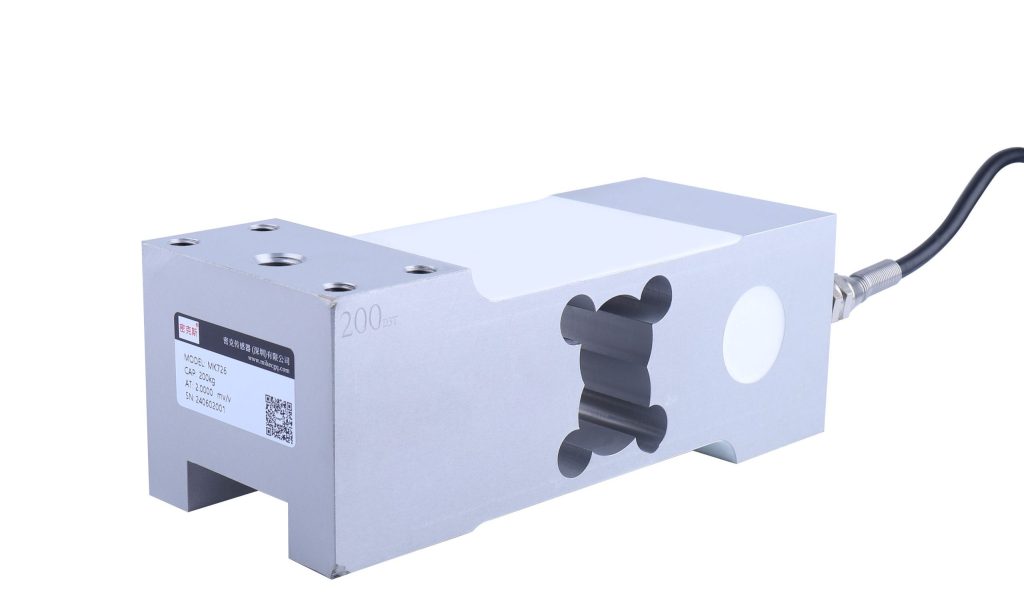

In the MK726, the parallel-beam geometry is used to hold accuracy even when the load is not perfectly centred, giving an industrial-grade cell with a long working life. Measurements stay consistent from cycle to cycle, which is what automated batching and packaging control depends on, and the tight package fits confined scale designs.
Key Features
- High accuracy (≤0.03%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to – for reliable operation in harsh environments
- Standard output 2.0mV/V±5%, compatible with common indicators
- Compact design for straightforward integration
Applications
Used in industrial batching, quantitative packaging, belt-conveyor and hopper scales, and in automated sortation systems.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 100kg 200kg 300kg 500kg 750kg 1000kg | Comprehensive accuracy | ≤0.03%F.S |
| Temp. compensated range | -10°C~40°C | Output sensitivity | 2.0mV/V±5% |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temp. Effect on Output | <0.03%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temp. Effect on Zero | <0.02%F.S/10°C | Repeatability | ±0.02%F.S |
| Input impedance | 410±15Ω | Creep (30 min) | ±0.02%F.S/30min |
| Output impedance | 350±5Ω | Zero balance | ≤±1%F.S |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 10V DC |
| Material | Aluminum alloy | Safe overload | 120%F.S |
| Protection class | – | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

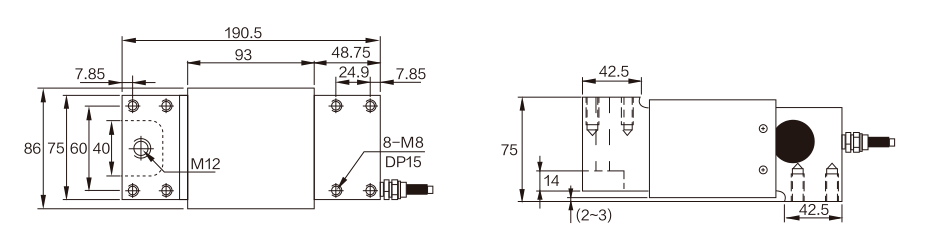

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK726?
Used in industrial batching, quantitative packaging, belt-conveyor and hopper scales, and in automated sortation systems.
Which indicator, transmitter or system works with the MK726?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
