Overview

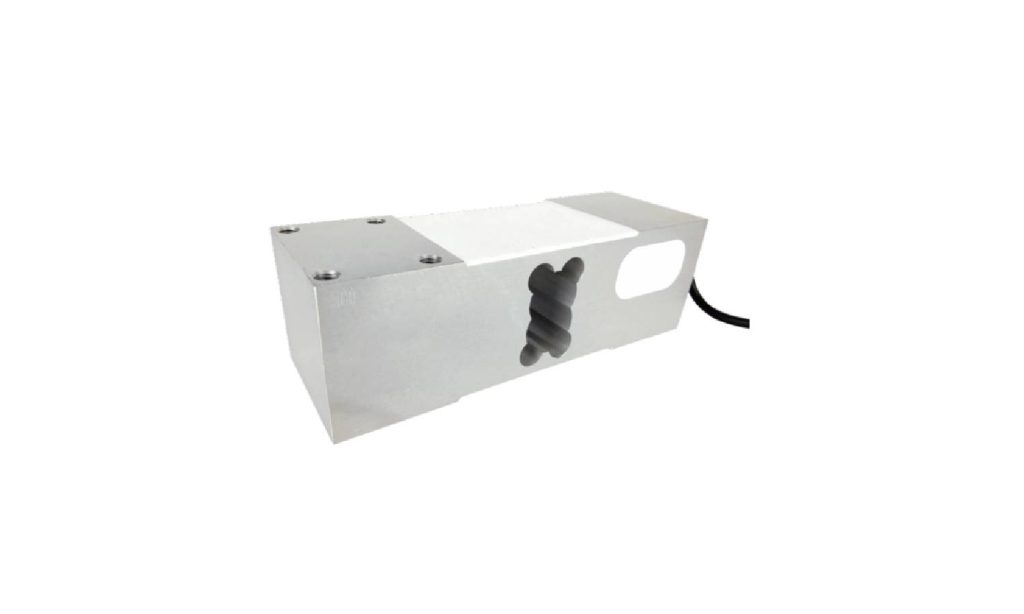

Offering dependable accuracy and strong off-centre-load resistance, the MK725 parallel-beam load cell is built for rugged industrial service. Its compact, stable design suits precise weighing and control in automated handling and packaging equipment.
Key Features
- High accuracy (≤0.03%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Standard output 1.0mV/V±0.15%, compatible with common indicators
- Compact design for straightforward integration
Applications
Typically installed on batching and dosing scales, packaging and checkweigher systems, belt and hopper scales, and sortation lines.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 1kN(100kg) 2kN(200kg) 3kN(300kg) 5kN(500kg) 10kN(1t) | Comprehensive accuracy | ≤0.03%F.S |
| Temp. compensated range | -10°C~40°C | Output sensitivity | 1.0mV/V±0.15% |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temp. Effect on Output | <0.02%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temp. Effect on Zero | <0.03%F.S/10°C | Repeatability | ±0.02%F.S |
| Input impedance | 410±15Ω | Creep (30 min) | ±0.02%F.S/30min |
| Output impedance | 350±5Ω | Zero balance | ≤±1%F.S |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5-12V DC |
| Material | Aluminum alloy | Safe overload | 120%F.S |
| Recommended surface size | 150x150mm | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

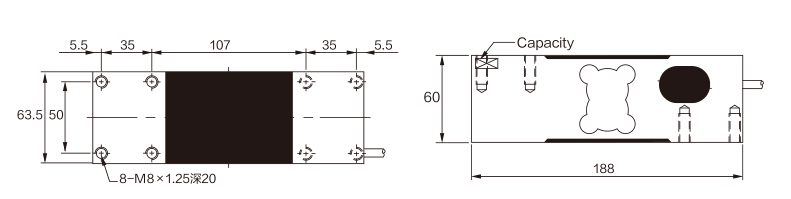

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK725?
Typically installed on batching and dosing scales, packaging and checkweigher systems, belt and hopper scales, and sortation lines.
Which indicator, transmitter or system works with the MK725?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
