Overview

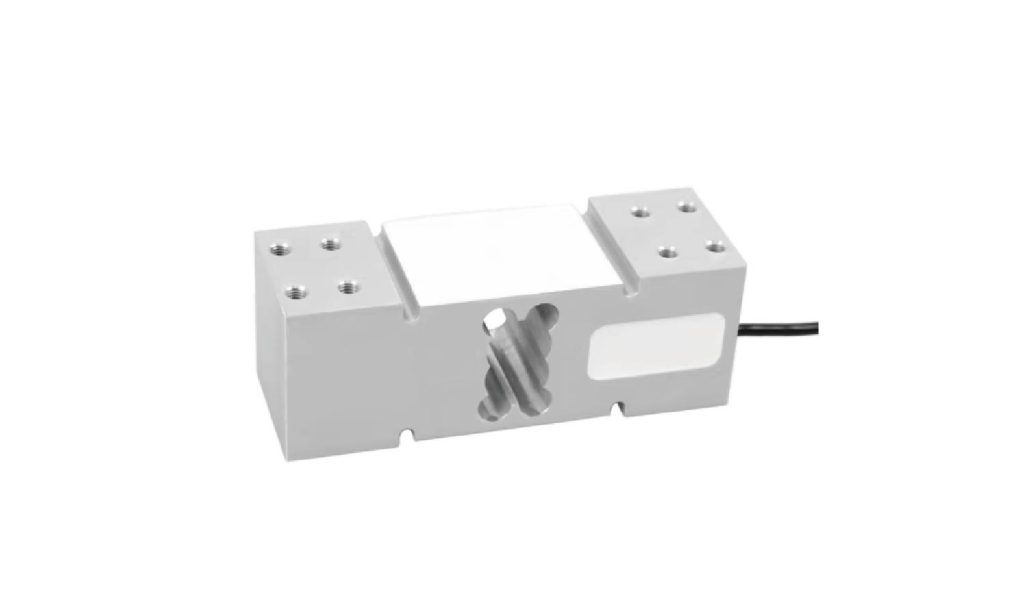

The MK724 is a parallel-beam load cell designed for stable, high-accuracy weighing with strong tolerance of off-centre loading. Rugged and compact, it forms the core sensing element of automated scale systems, rejecting side forces to keep readings true during fast, continuous production.
Key Features
- Strong off-centre and side-load rejection
- Compact parallel-beam construction
- Repeatable output for automated control
- High accuracy (≤0.03%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Standard output 0.8mV/V±15%, compatible with common indicators
Applications
Commonly used in industrial batching, quantitative packaging, belt and hopper scales, and automated sorting equipment.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 500kg 1000kg 1500kg | Comprehensive accuracy | ≤0.03%F.S |
| Temp. compensated range | -10°C~40°C | Output sensitivity | 0.8mV/V±15% |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temp. Effect on Output | <0.03%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temp. Effect on Zero | <0.03%F.S/10°C | Repeatability | ±0.02%F.S |
| Input impedance | 415±15Ω | Creep (30 min) | ±0.02%F.S/30min |
| Output impedance | 350±5Ω | Zero balance | ≤±1%F.S |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5-12V DC |
| Material | Aluminum alloy | Safe overload | 120%F.S |
| Recommended surface size | 200x200mm | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

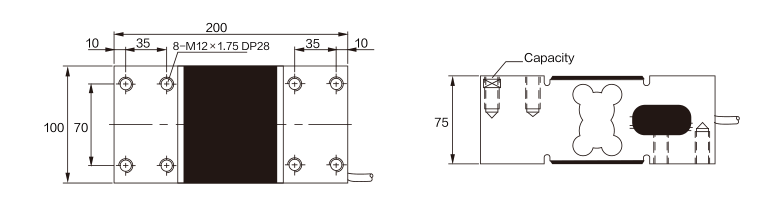

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK724?
Commonly used in industrial batching, quantitative packaging, belt and hopper scales, and automated sorting equipment.
Which indicator, transmitter or system works with the MK724?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
