Overview

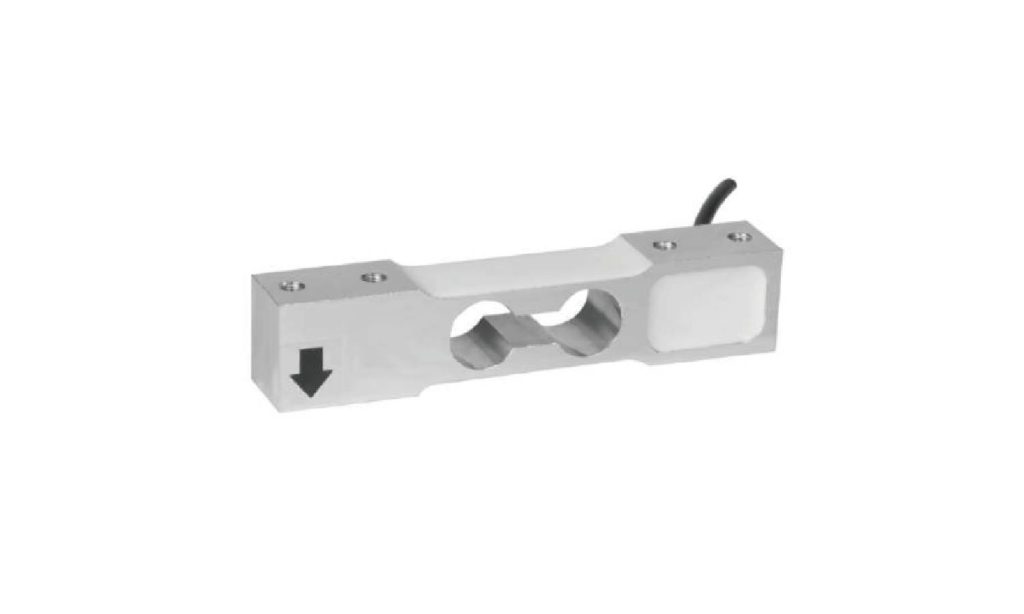

Where accuracy and longevity matter, the MK723 parallel-beam load cell provides a compact sensing element with high measurement accuracy and firm rejection of off-centre forces. Its stable, repeatable signal makes it a dependable building block for automated weighing and control installations of many kinds.
Key Features
- High accuracy (–) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to IP65 for reliable operation in harsh environments
- Standard output 2.0±10%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Well matched to industrial batching, quantitative packaging, belt-conveyor and hopper scales, and automatic sorting systems.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 3kg 5kg 10kg 15kg 20kg | Comprehensive accuracy | – |
| Temp. compensated range | -10°C~40°C | Output sensitivity | 2.0±10%mV/V |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.02%F.S. |
| Temp. Effect on Output | ±0.03%F.S./10°C | Hysteresis | ±0.015%F.S. |
| Temp. Effect on Zero | ±0.05%F.S./10°C | Repeatability | ±0.015%F.S. |
| Input impedance | 1130±20Ω | Creep (30 min) | ±0.03%F.S./30min |
| Output impedance | 1000±10Ω | Zero balance | ≤±5%F.S. |
| Insulation resistance | ≥2000MΩ / 50VDC | Excitation voltage | 5-12V DC |
| Material | Aluminum alloy | Safe overload | 120%F.S. |
| Protection class | IP65 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

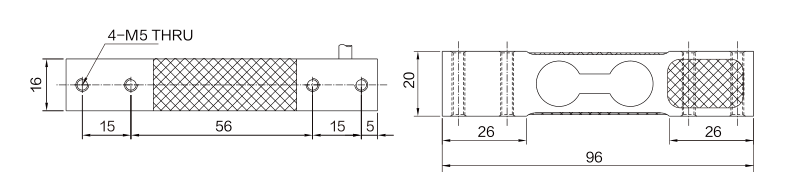

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK723?
Well matched to industrial batching, quantitative packaging, belt-conveyor and hopper scales, and automatic sorting systems.
Which indicator, transmitter or system works with the MK723?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
