Overview

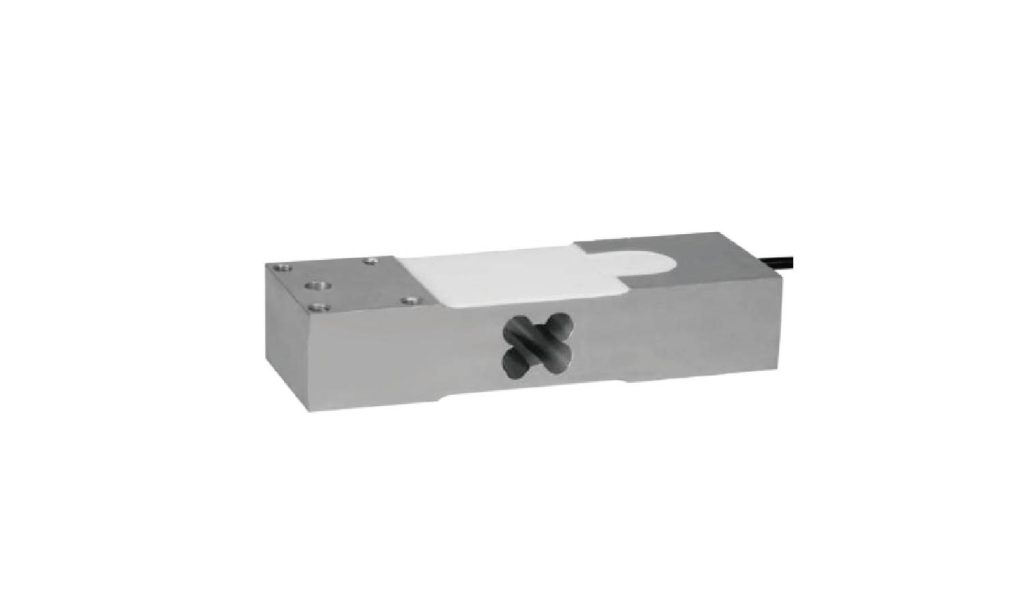

The MK721 parallel-beam load cell is engineered around accuracy, robustness and immunity to off-centre forces. Compact and stable in service, it acts as the core weighing element in plant equipment where repeatable results must feed automated control without frequent re-adjustment.
Key Features
- High accuracy (–) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to IP65 for reliable operation in harsh environments
- Standard output 2.0±0.5%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Ingredient batching, quantitative packaging, electronic belt and hopper scales, plus automated sortation systems.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 200kg 300kg 500kg 600kg 1200kg | Comprehensive accuracy | – |
| Temp. compensated range | -10°C~40°C | Output sensitivity | 2.0±0.5%mV/V |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.015%F.S. |
| Temp. Effect on Output | <0.02%F.S./10°C | Hysteresis | ±0.01%F.S. |
| Temp. Effect on Zero | <0.02%F.S./10°C | Repeatability | ±0.01%F.S. |
| Input impedance | 405±10Ω | Creep (30 min) | ±0.02%F.S./30min |
| Output impedance | 350±3Ω | Zero balance | ≤±1%F.S. |
| Insulation resistance | ≥5000MΩ / 50VDC | Excitation voltage | 5-12V DC |
| Material | Aluminum alloy | Safe overload | 120%F.S. |
| Protection class | IP65 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

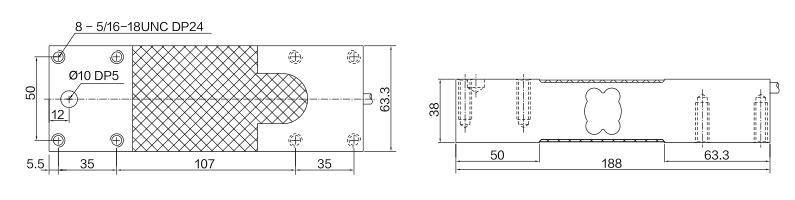

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK721?
Ingredient batching, quantitative packaging, electronic belt and hopper scales, plus automated sortation systems.
Which indicator, transmitter or system works with the MK721?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
