Overview

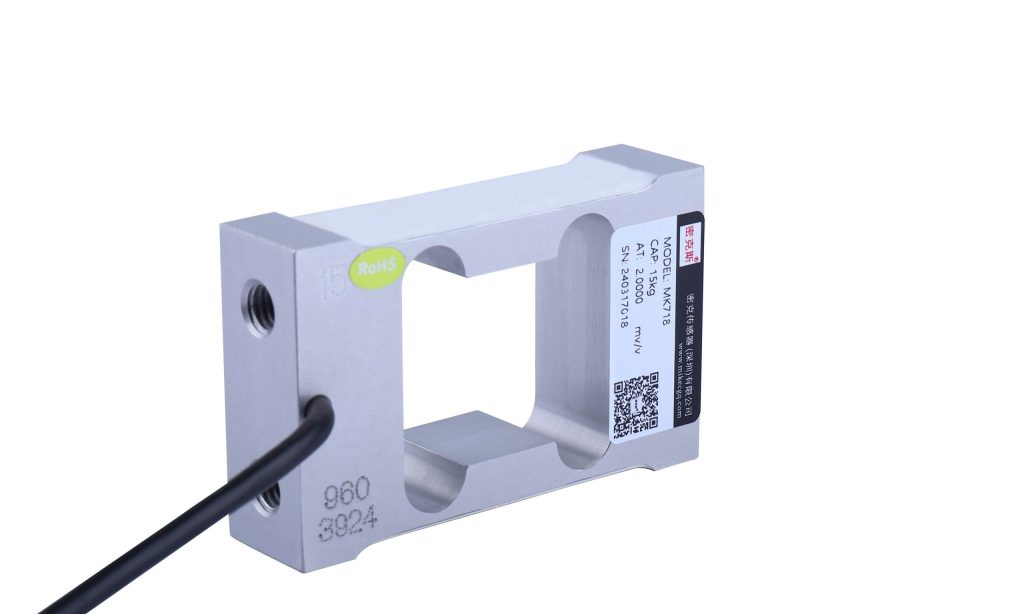

Built around a parallel-beam elastic element, the MK718 load cell delivers industrial durability with high accuracy and reliable rejection of off-centre loads. Its small, stable design suits precise weighing tasks in tight, automated installations, and consistent output helps maintain quality control on busy production lines.
Key Features
- Rejects off-centre loads for stable readings
- Compact, durable parallel-beam body
- Consistent output for quality control
- High accuracy (≤0.03%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to – for reliable operation in harsh environments
Applications
Applied to batching scales, quantitative packaging systems, belt and hopper scales, and automated sortation equipment.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 4kg 8kg 15kg 20kg | Comprehensive accuracy | ≤0.03%F.S |
| Temp. compensated range | -10°C~40°C | Output sensitivity | 2.0mV/V±10% |
| Operating temp. range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temp. Effect on Output | <0.03%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temp. Effect on Zero | <0.02%F.S/10°C | Repeatability | ±0.02%F.S |
| Input impedance | 410±15Ω | Creep (30 min) | ±0.02%F.S/30min |
| Output impedance | 350±5Ω | Zero balance | ≤±1%F.S |
| Insulation resistance | ≥5000MΩ | Excitation voltage | 5-12V DC |
| Material | Aluminum alloy | Safe overload | 120%F.S |
| Protection class | – | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

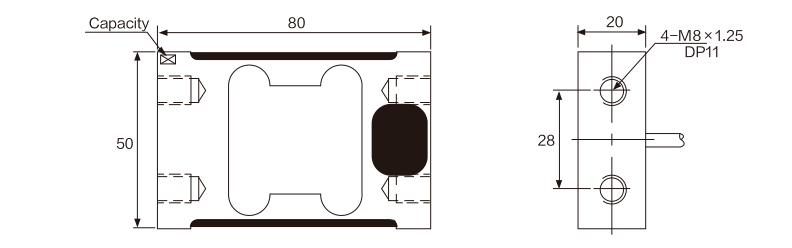

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK718?
Applied to batching scales, quantitative packaging systems, belt and hopper scales, and automated sortation equipment.
Which indicator, transmitter or system works with the MK718?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
